Multi-purpose Signal Conditioners
The 482C series comprises 4-channel benchtop signal conditioners, while the 483C series offers 8-channel rack-mounted units. Utilizing identical signal conditioning electronics across equivalent 4 and 8-channel models ensures consistent performance. Both signal conditioner series offer standalone units with essential functionalities, as well as units equipped with advanced features like a front panel keypad and display or an Ethernet port for computer control. Additional features encompass gain adjustment, filtering options, LED fault indicators, and TEDS capability.
Highlights of PCB Multi-purpose Signal Conditioners
- 4 channel bench top models
- 8 channel rack mount models
- Conditions multiple sensor types
- Adjustable constant current to sensor
The 482C series of signal conditioners comprises 4-channel benchtop units designed to cater to a diverse range of sensor types. Within this series, options range from basic to advanced and dual-mode units. All models feature front panel LED indicators for input fault and overload detection. The advanced units offer incremental gain adjustment, front panel keypads for enhanced control, support for TEDS (Transducer Electronic Data Sheet), and optional filtering capabilities.
Advanced ICP® Signal Conditioners
Sensor input type: ICP®, Voltage
Features:
- Front panel keypad/display
- x0.1 to x200 incremental gain
- RS-232 port for computer control
- Optional input/output filtering
Sensor input type: ICP®, Voltage
Features:
- AC/DC coupling
- x0.1 to x200 incremental gain
- Front panel keypad/display
- RS-232 port for computer control
- TEDS sensor support
- Optional input/output filtering

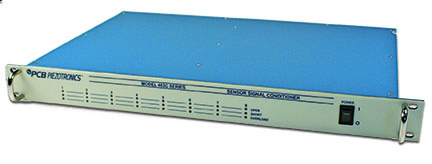

The 483C series comprises 8-channel rack-mounted signal conditioners designed to accommodate a diverse array of sensor types. Offering both basic standalone units and models with advanced functionality, this series caters to various user requirements. All models feature front panel LED indicators for input fault and overload detection. Specific features of each model are outlined below.
Basic ICP® Signal Conditioners
Sensor input type: ICP®
Features:
- Adjustable ICP® current
- Unity gain
- Ready to use functionality
Sensor input type: ICP®, Voltage
Features:
- x1, x10, x100 jumper selectable gain
- Adjustable ICP® current
- Optional input filtering

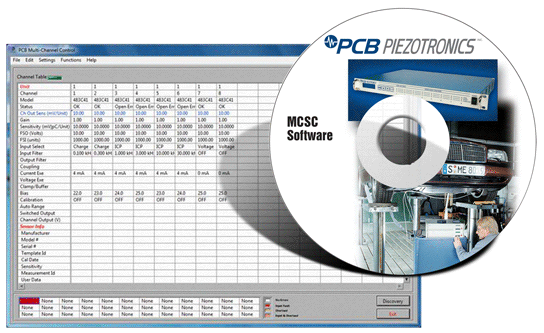

MCSC Control Software
Signal conditioners equipped with an RS-232 or Ethernet interface come bundled with PCB's Multi-Channel Signal Conditioner control software. This user-friendly software presents a comprehensive table detailing the current settings for each channel of the unit. Users can effortlessly modify any setting by adjusting values directly within the table. The adjustable parameters encompass sensor input type, gain, filtering options, and excitation current. Compatible with Windows 7 and above.
