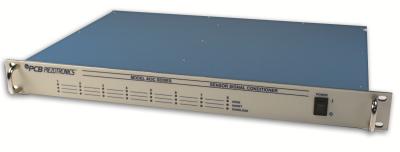

Eight-Channel ICP®/Voltage/Charge Sensor Signal Conditioner

Model 483C40

Add to Quote
  • CE
  • IP

8-channel, line-powered, ICP®/charge sensor signal cond., gain, selectable LPF, Ethernet

  • Sensor Input Type(s): ICP®, Voltage, Charge
  • Channels: 8
  • TEDS Sensor Support: Yes
  • Power Required: AC Power

Specification Notes

[1] The high frequency tolerance is accurate within ±5% of the specified frequency.
[2] The low frequency tolerance is accurate within ±25% of the specified frequency.
[3] Max input signal is dependant on sensor bias.
[4] Typical.
[5] User adjustable, factory set at 4 mA (± 1.0 mA). Each channel individually adjustable.
[6] Use T1.6A fuse.
[7] See PCB Declaration of Conformance PS024 for details.

English: SI:
Performance
Channels 8 8
Sensor Input Type(s) ICP®, Voltage, Charge ICP®, Voltage, Charge
Gain (ICP®/ Voltage Input) 0.1 to 200 0.1 to 200
Gain (mV/pC ) (Charge Input) 0.01 to 2000 0.01 to 2000
Gain Increment(minimum) (ICP®/ Voltage Input) 0.1 0.1
Gain Increment(minimum) (Charge Input) 0.01 0.01
Accuracy(ICP®/ Voltage Input) (Gain, 0.1 to 0.4) ±5 % ±5 %
Accuracy(ICP®/ Voltage Input) (Gain, 0.5 to 200) ±1 % ±1 %
Accuracy(Charge Input) (Gain, 0.01 to 0.04) ±6 % ±6 %
Accuracy(Charge Input) (Gain, 0.05 to 2000) ±1 % ±1 %
Input Range(maximum) (Charge Input) 100000 pC pk 100000 pC pk
Input Range(maximum) (ICP® Input) 10 Vpk 10 Vpk [3]
Input Range(maximum) (Voltage Input) 5 Vpk 5 Vpk
Low Frequency Response (-5 %) (ICP®/ Voltage Input) ≤0.05 Hz ≤0.05 Hz
Low Frequency Response (-5 %) (Charge Input) 0.5 Hz 0.5 Hz [2]
Electrical Filter Roll-off 160 dB/decade 160 dB/decade
Filter Type (8-pole Butterworth) Low Pass Low Pass
High Frequency Response (-3 dB) (Gain from 0.01 to 99.9) >100 kHz >100 kHz
High Frequency Response (-3 dB) (Gain from 100 to 2000) >80 kHz >80 kHz
Electrical Filter Corner Frequency (-10 %) 0.1-0.3-1-3-10-30 kHz 0.1-0.3-1-3-10-30 kHz [1]
Electrical Filter Pass Band Amplitude Accuracy 1 % 1 %
Phase Response (at 1 kHz) ±2 ° ±2 °
Non-Linearity 1 % 1 %
Cross Talk <-72 dB <-72 dB
TEDS Sensor Support Yes Yes
Fault/Bias Monitor LEDS Open/Short/Overload Open/Short/Overload
Control Interface
Digital Control Interface Ethernet Ethernet
Environmental
Temperature Range (Operating) +32 to +120 °F 0 to +50 °C
Electrical
Power Required (direct input to unit) AC Power AC Power [6]
AC Power (47 to 63 Hz) 100 to 240 VAC 100 to 240 VAC
AC Power ≤0.7 Amps ≤0.7 Amps [6]
Excitation Voltage (To Sensor) >24 VDC >24 VDC
DC Offset <50 mV <50 mV
Constant Current Excitation (To Sensor) 2 to 20 mA 2 to 20 mA [5]
Output Voltage (minimum) 10 V 10 V
Output Current (minimum) 10 mA 10 mA
Output Impedance <50 Ohm <50 Ohm
Broadband Electrical Noise (1 to 10000 Hz) (Gain x1) 50 µV/rms 50 µV/rms [4]
Spectral Noise (1 Hz) 8 µV/√Hz 8 µV/√Hz [4]
Spectral Noise (10 Hz) 2 µV/√Hz 2 µV/√Hz [4]
Spectral Noise (100 Hz) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Spectral Noise (1 kHz) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Spectral Noise (10 kHz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 kHz) (Gain x10) 75 µV rms 75 µV rms [4]
Spectral Noise (1 Hz) 18 µV/√Hz 18 µV/√Hz [4]
Spectral Noise (10 Hz) 1.5 µV/√Hz 1.5 µV/√Hz [4]
Spectral Noise (100 Hz) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Spectral Noise (1 kHz) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Spectral Noise (10 kHz) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (Gain x100) 350 µV rms 350 µV rms [4]
Spectral Noise (1 Hz) 100 µV/√Hz 100 µV/√Hz [4]
Spectral Noise (10 Hz) 10 µV/√Hz 10 µV/√Hz [4]
Spectral Noise (100 Hz) 6 µV/√Hz 6 µV/√Hz [4]
Spectral Noise (1 kHz) 5 µV/√Hz 5 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (0.1 mV/pC) 52.0 µV/rms 52.0 µV/rms [4]
Spectral Noise (10 kHz) 5 µV/√Hz 5 µV/√Hz [4]
Spectral Noise (1 Hz) 10.0 µV/√Hz 10.0 µV/√Hz [4]
Spectral Noise (10 Hz) 1.5 µV/√Hz 1.5 µV/√Hz [4]
Spectral Noise (100 Hz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (1 kHz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (10 kHz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (1.0 mV/pC) 52.0 µV/rms 52.0 µV/rms [4]
Spectral Noise (1 Hz) 14.0 µV/√Hz 14.0 µV/√Hz [4]
Spectral Noise (10 Hz) 2.0 µV/√Hz 2.0 µV/√Hz [4]
Spectral Noise (100 Hz) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Spectral Noise (1 kHz) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Spectral Noise (10 kHz) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (10.0 mV/pC) 56.0 µV/rms 56.0 µV/rms [4]
Spectral Noise (1 Hz) 15.0 µV/√Hz 15.0 µV/√Hz [4]
Spectral Noise (10 Hz) 2.0 µV/√Hz 2.0 µV/√Hz [4]
Spectral Noise (100 Hz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (1 kHz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (10 kHz) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Oscillator (+/- 2% ) (Internal Generator - ICP®/ Voltage Mode) 0.1 V pk 0.1 V pk
Oscillator (+/- 2% ) (Internal Generator - Charge Mode) 100 pC pk 100 pC pk
Oscillator (+/- 2% ) 100/1000 Hz 100/1000 Hz
Overload Threshold (±0.5 Vpk) 10 Vpk 10 Vpk
Physical
Electrical Connector (Input, sensor) BNC Jack BNC Jack
Electrical Connector (Output) BNC Jack BNC Jack
Electrical Connector (Ethernet) RJ-45 RJ-45
Size - Height (nominal ) 1.75 in 44.5 mm
Size - Width (nominal ) 19 in 482.6 mm
Size - Depth (nominal ) 13.7 in 348 mm
Weight 8 lb 3.6 kg
