platinum stock product; 4-channel, line-powered, icp® sensor signal cond., internal jumper selectable gain x1, x10, x100
platinum

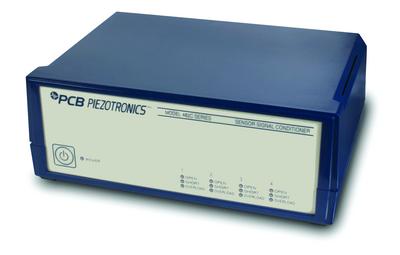

Four-Channel, ICP Sensor Signal Conditioner

Model 482C15

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-10 is 3 Wks.
Lead Time for 11-20 is 4 Wks.
  • CE
  • IP

Platinum Stock Product; 4-channel, Line-powered, ICP® sensor signal cond., Internal jumper selectable gain x1, x10, x100

  • DC Power: <0.25 Amps

Specification Notes

[1] Jumper selectable on internal circuit board.
[2] The low frequency tolerance is accurate within ±25% of the specified frequency.
[3] Un-buffered output, read out device input impedance affects discharge time constant and low frequency response of unit.
[4] Typical.
[5] User adjustable, factory set at 4 mA (± 0.5 mA). One control adjusts all channels.
[1] Jumper selectable on internal circuit board.
[3] Un-buffered output, read out device input impedance affects discharge time constant and low frequency response of unit.
[6] See PCB Declaration of Conformance PS024 for details.

English: SI:
Performance
Channels 4 4
Sensor Input Type(s) ICP®, Voltage ICP®, Voltage [1]
Voltage Gain (±1 %) (at 500 Hz) x1, x10, x100 x1, x10, x100 [1]
Output Range (Maximum) ±10 V ±10 V
Low Frequency Response (-5 %) <0.05 Hz <0.05 Hz [2] [3]
High Frequency Response (-3 dB) (x100) >50000 Hz >50000 Hz
High Frequency Response (-5 %) (x100) >17 kHz >17 kHz
High Frequency Response (-5 %) (x1) >100 kHz >100 kHz
High Frequency Response (-5 %) (x10) >40 kHz >40 kHz
High Frequency Response (-3 dB) (x1,x10) >100 kHz >100 kHz
Phase Response (at 1 kHz) ±1 ° ±1 °
Cross Talk (maximum) -72 dB -72 dB
Fault/Bias Monitor/Meter (LED) Open/Short/Overload Open/Short/Overload
Environmental
Temperature Range (Operating) +32 to +120 °F 0 to +50 °C
Electrical
Power Required (for supplied AC power adaptor) AC Power AC Power
Power Required (direct input to unit) DC Power DC Power
AC Power (47 to 63 Hz) 100 to 240 VAC 100 to 240 VAC
AC Power ≤0.7 Amps ≤0.7 Amps
DC Power <0.25 Amps <0.25 Amps
DC Power +32 to 38 VDC +32 to 38 VDC
Excitation Voltage (±1 VDC) (To Sensor) +26 VDC +26 VDC
DC Offset <20 mV <20 mV
Constant Current Excitation (To Sensor) 0 to 20 mA 0 to 20 mA [5]
Discharge Time Constant (0 to 50 %) >7 sec >7 sec [3]
Broadband Electrical Noise (1 to 10000 Hz) (Gain x1) 5.6 µV rms 5.6 µV rms [4]
Spectral Noise (1 Hz) 0.67 µV/√Hz 0.67 µV/√Hz [4]
Spectral Noise (10 Hz) 0.10 µV/√Hz 0.10 µV/√Hz [4]
Spectral Noise (100 Hz) 0.06 µV/√Hz 0.06 µV/√Hz [4]
Spectral Noise (1 kHz) 0.06 µV/√Hz 0.06 µV/√Hz [4]
Spectral Noise (10 kHz) 0.05 µV/√Hz 0.05 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (Gain x10) 21 µV/rms 21 µV/rms [4]
Spectral Noise (1 Hz) 5.10 µV/√Hz 5.10 µV/√Hz [4]
Spectral Noise (10 Hz) 0.60 µV/√Hz 0.60 µV/√Hz [4]
Spectral Noise (100 Hz) 0.22 µV/√Hz 0.22 µV/√Hz [4]
Spectral Noise (1 kHz) 0.22 µV/√Hz 0.22 µV/√Hz [4]
Spectral Noise (10 kHz) 0.19 µV/√Hz 0.19 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (Gain x100) 165 µV/rms 165 µV/rms [4]
Spectral Noise (1 Hz) 57 µV/√Hz 57 µV/√Hz [4]
Spectral Noise (10 Hz) 5.2 µV/√Hz 5.2 µV/√Hz [4]
Spectral Noise (100 Hz) 1.7 µV/√Hz 1.7 µV/√Hz [4]
Spectral Noise (1 kHz) 1.8 µV/√Hz 1.8 µV/√Hz [4]
Spectral Noise (10 kHz) 1.4 µV/√Hz 1.4 µV/√Hz [4]
Overload Threshold (±1.0 Vpk) ±10/5 Vpk ±10/5 Vpk [1]
Physical
Electrical Connector (ICP® Sensor Input) BNC Jack BNC Jack
Electrical Connector (Output) BNC Jack BNC Jack
Electrical Connector (DC Power Input) 5-socket DIN (female) 5-socket DIN (female)
Size - Height 3.2 in 8.1 cm
Size - Width 8.0 in 20 cm
Size - Depth 5.9 in 15 cm
Weight 1.25 lb 567 gm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
017AXX 1
488B04/NC Universal AC power adapter, 100-240 VAC/ 50-60 Hz input, 33 VDC output, 5-pin DIN (for models 482C05 and 482C15), no line cord 1
