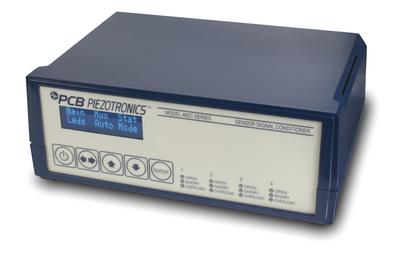

4-channel ICP® Sensor Signal Conditioner

Model 482C54

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

4-channel, line-powered, ICP®/charge sensor signal cond., incremental gain, selectable charge conversion, TEDS, 10k LPF, RS-232

  • Frequency Range: (-5%)0.05 to 75000 Hz
  • DC Power: +9 to +18 VDC

Specification Notes

[1] The low frequency tolerance is accurate within ±20% of the specified frequency.
[2] Frequency tolerance is within ± 5% of the specified value.
[3] Contact factory for other available frequencies.
[4] Typical.
[5] User adjustable, factory set at 4 mA (± 1.0 mA). One control adjusts all channels.
[6] See PCB Declaration of Conformance PS024 for details.

English: SI:
Performance
Channels 4 4
Sensor Input Type(s) ICP®, Voltage, Charge ICP®, Voltage, Charge
Voltage Gain x0 to x200 x0 to x200
Voltage Gain Increment 0.1 0.1
Accuracy (Gain, x0.1 to x0.4) ±5 % ±5 %
Accuracy (Gain, x0.5 to x200) ±1 % ±1 %
Sensitivity (±1 %) (Charge Input @ 100 Hz) 0.1 / 1.0 / 10.0 mV/pC 0.1 / 1.0 / 10.0 mV/pC
Insulation Resistance at Input(Minimum Required) (0.1) 10 kohm 10 kohm
Insulation Resistance at Input (1.0) 100 kohm 100 kohm
Insulation Resistance at Input (10.0) 1 MOhm 1 MOhm
Input Range (Charge Input, Nominal) ±100000 pC ±100000 pC
Output Range (Minimum) ±10 Vpk ±10 Vpk
Frequency Range (-5 %) (x100 to x200 Gain) 0.05 to 75000 Hz 0.05 to 75000 Hz
Frequency Range (-5 %) (x0.1 to x99.9 Gain) 0.05 to 100000 Hz 0.05 to 100000 Hz
Low Frequency Response (-5 %) (Charge Input) 0.5 Hz 0.5 Hz [1]
Electrical Filter Roll-off 80 dB/decade 80 dB/decade
Filter Type (Fourth-order Butterworth) Low Pass Low Pass
Electrical Filter Corner Frequency (-3 dB) 10 kHz 10 kHz [2] [3]
Electrical Filter Roll-off 24 dB/octave 24 dB/octave
Electrical Filter Pass Band Amplitude Accuracy 1 % 1 %
Electrical Filter Stop Band Attenuation (Minimum) 96 dB 96 dB
Phase Response (at 1 kHz) ±1 ° ±1 °
Non-Linearity (Charge Input) ≤1 % FS ≤1 % FS
Cross Talk (maximum) -72 dB -72 dB
TEDS Sensor Support Yes Yes
Fault/Bias Monitor/Meter (LED) Open/Short/Overload Open/Short/Overload
Control Interface
Digital Control Interface RS-232 RS-232
Human Interface Keypad Keypad
Display 2 rows, 16 columns 2 rows, 16 columns
Digital Control: Data Rate 19200 bps 19200 bps
Digital Control: Start, Data, Stop, Parity 1, 8, 1, No 1, 8, 1, No
Digital Control: Handshaking RTS/CTS RTS/CTS
Digital Control: Cable Length (Maximum) 50 ft 15.2 m
Environmental
Temperature Range (Operating) +32 to +120 °F 0 to +50 °C
Electrical
Power Required (for supplied AC power adaptor) AC Power AC Power
Power Required (direct input to unit) DC Power DC Power
AC Power (50 to 60 Hz) 100 to 240 VAC 100 to 240 VAC
AC Power ≤1.6 Amps ≤1.6 Amps
DC Power +9 to +18 VDC +9 to +18 VDC
DC Power ≤2.5 Amps ≤2.5 Amps
Excitation Voltage (To Sensor) ≥+24 VDC ≥+24 VDC
DC Offset ≤50 mV ≤50 mV
Constant Current Excitation (To Sensor) 0 to 20 mA 0 to 20 mA [5]
Output Impedance ≤50 Ohm ≤50 Ohm
Broadband Electrical Noise (1 to 10000 Hz) (Gain x1) 50 µV rms 50 µV rms [4]
Spectral Noise (1 Hz ) (Gain x1) 8.0 µV/√Hz 8.0 µV/√Hz [4]
Spectral Noise (10 Hz ) (Gain x1) 1.5 µV/√Hz 1.5 µV/√Hz [4]
Spectral Noise (100 Hz ) (Gain x1) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Spectral Noise (1 kHz ) (Gain x1) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Spectral Noise (10 kHz ) (Gain x1) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (Gain x10) 75 µV rms 75 µV rms [4]
Spectral Noise (1 Hz ) (Gain x10) 20 µV/√Hz 20 µV/√Hz [4]
Spectral Noise (10 Hz ) (Gain x10) 1.5 µV/√Hz 1.5 µV/√Hz [4]
Spectral Noise (100 Hz ) (Gain x10) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Spectral Noise (1 kHz ) (Gain x10) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Spectral Noise (10 kHz ) (Gain x10) 1.0 µV/√Hz 1.0 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (Gain x100) 350 µV rms 350 µV rms [4]
Spectral Noise (1 Hz ) (Gain x100) 100.0 µV/√Hz 100.0 µV/√Hz [4]
Spectral Noise (10 Hz ) (Gain x100) 10.0 µV/√Hz 10.0 µV/√Hz [4]
Spectral Noise (100 Hz ) (Gain x100) 8.0 µV/√Hz 8.0 µV/√Hz [4]
Spectral Noise (1 kHz ) (Gain x100) 6.0 µV/√Hz 6.0 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (0.1 mV/pC & Gain x1) 52.0 µV/rms 52.0 µV/rms [4]
Spectral Noise (10 kHz ) (Gain x100) 6.0 µV/√Hz 6.0 µV/√Hz [4]
Spectral Noise (1 Hz) (0.1 mV/pC & Gain x1) 10.0 µV/√Hz 10.0 µV/√Hz [4]
Spectral Noise (10 Hz) (0.1 mV/pC & Gain x1) 1.5 µV/√Hz 1.5 µV/√Hz [4]
Spectral Noise (100 Hz) (0.1 mV/pC & Gain x1) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (1000 Hz) (0.1 mV/pC & Gain x1) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (10000 Hz) (0.1 mV/pC & Gain x1) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (1.0 mV/pC & Gain x1) 52.0 µV rms 52.0 µV rms [4]
Spectral Noise (1 Hz) (1.0 mV/pC & Gain x1) 14.0 µV/√Hz 14.0 µV/√Hz [4]
Spectral Noise (10 Hz) (1.0 mV/pC & Gain x1) 2.0 µV/√Hz 2.0 µV/√Hz [4]
Spectral Noise (100 Hz) (1.0 mV/pC & Gain x1) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Spectral Noise (1000 Hz) (1.0 mV/pC & Gain x1) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Spectral Noise (10000 Hz) (1.0 mV/pC & Gain x1) 0.7 µV/√Hz 0.7 µV/√Hz [4]
Broadband Electrical Noise (1 to 10000 Hz) (10.0 mV/pC & Gain x1) 56.0 µV rms 56.0 µV rms [4]
Spectral Noise (1 Hz) (10.0 mV/pC & Gain x1) 15.0 µV/√Hz 15.0 µV/√Hz [4]
Spectral Noise (10 Hz) (10.0 mV/pC & Gain x1) 2.0 µV/√Hz 2.0 µV/√Hz [4]
Spectral Noise (100 Hz) (10.0 mV/pC & Gain x1) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (1000 Hz) (10.0 mV/pC & Gain x1) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Spectral Noise (10000 Hz) (10.0 mV/pC & Gain x1) 0.6 µV/√Hz 0.6 µV/√Hz [4]
Calibration Input (±1 %) ±1000 pC/V ±1000 pC/V
Overload Threshold (±0.2 Vpk) +10 Vpk +10 Vpk
Physical
Electrical Connector (ICP® Sensor Input) BNC Jack BNC Jack
Electrical Connector (Charge Sensor Input) BNC Jack BNC Jack
Electrical Connector (Output) BNC Jack BNC Jack
Electrical Connector (DC Power Input) 6-socket mini DIN (female) 6-socket mini DIN (female)
Electrical Connector (Charge Calibration Input) BNC Jack BNC Jack
Electrical Connector (RS-232 Digital Control) DB-9 Connector DB-9 Connector
Size - Height 3.2 in 8.1 cm
Size - Width 8.0 in 20 cm
Size - Depth 5.9 in 15 cm
Weight 2.40 lb 1089 gm

* All specifications are at room temperature unless otherwise specified.
