Hand Torque Angle Wrenches

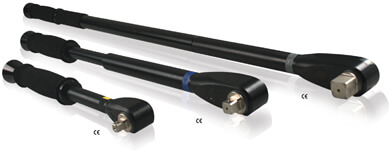

PCB's Series HTA7000 Hand Torque-Angle Wrenches are rugged and lightweight, yet durable enough to be used in the toughest industrial environments, and the narrowed head is ideal for access when space is at a premium. With high-resolution angle measurement, these wrenches are ideal for troubleshooting bolted joints and torque-angle audits using Torque Angle Signature Analysis techniques as well as employing the M-Alpha Audit Method patented by RS Technologies. Equipped with an ID chip, setup and calibration is quick and easy when used with instruments from RS Technologies, such as the Model 962 Portable Data Recorder and the Model 920 Portable Digital Transducer Instrument.

Highlights:

  • Durable, ergonomic design
  • Lightweight, high strength
  • Excellent overall accuracy
  • High resolution angle measurement
  • Compatible with most strain gage instruments and data collectors
  • Wide range of torque capabilities
  • Comfortable foam handle

Applications:

Hand Torque-Angle Wrenches
Model No. Capacity Drive Size Length Weight
027125-07012 100 lbf-in
11.4 Nm 		¼-inch Square 8 in
203 mm 		11.2 oz
318 gm
027137-07022 200 lbf-in
22.7 Nm 		3/8 -inch Square 12 in
305 mm 		12.8 oz
363 gm
027137-07051 50 lbf-ft
67.8 Nm 		3/8 -inch Square 12 in
305 mm 		12.8 oz
363 gm
027250-07101 100 lbf-ft
135.6 Nm 		½-inch Square 21 in
540 mm 		1.8 lb
816 gm
027250-07201 200 lbf-ft
271.2 Nm 		½-inch Square 21 in
540 mm 		1.8 lb
816 gm
027250-07301 300 lbf-ft
407.0 Nm 		½-inch Square 28 in
711 mm 		3.2 lb
1.5 kg
027375-07501 500 lbf-ft
678.0 Nm 		¾-inch Square 44 in
1118 mm 		6.5 lb
3 kg
Common Specifications
Output at Rated Capacity 2 mV/V ±0.25% FS
Shunt Calibration 2 mV/V with 43.575 kOhm Precision Resistor
Interchangeability Matched for mV/V and Shunt Calibration ±0.3% FS
Overload Capacity 150% FS
Non-Linearity ±0.25% FS
Hysteresis ±0.25% FS
Excitation Voltage 10 VDC Maximum
Bridge Resistance 350 Ohm
Compensated Temperature Range +70 to +150°F
+21 to +66°C
Operating Temperature Range 0 to +200°F
-18 to +93°C
Temperature Effect on Zero ±0.01% FS/°F
±0.018% FS/°C
Temperature Effect on Output ±0.001% Reading/°F
±0.0018% Reading/°C
Connector PT02H-12-10P
Supplied Accessories
Shunt Calibration Resistor, & A2LA Accredited Calibration Certificate
Recommended Accessories
Model 920 Portable Digital Transducer Instrument 080920-01000
Model 962 Portable Data Recorder 080962-01000
Cable Assembly, 10' Coiled,
PT to DB15 Male 		097000-34445
Mating Connector, Standard 42420-000630
PT06A-12-10S (SR)
