hand torque angle wrench, w/angle encoder & auto-id, 500 ft-lb (678 nm), 43-inch handle, 3/4-inch square drive, 10-pin pt receptacle

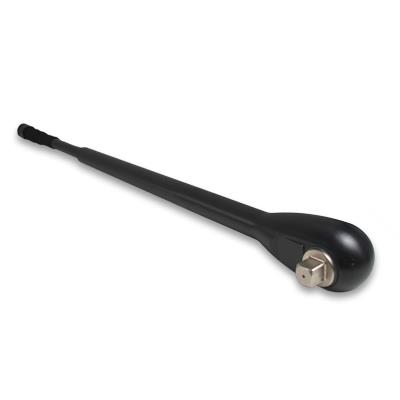

Hand Torque Angle Wrench

Model 027375-07501

  • CE
  • IP

Hand Torque Angle Wrench, w/Angle Encoder & Auto-ID, 500 ft-lb (678 Nm), 43-inch Handle, 3/4-inch Square Drive, 10-pin PT Receptacle

For more information on RS Technologies Fastener Assembly products and applications, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-assembly

To view the RS Technologies Assembly Product Catalog, please visit:
https://www.pcb.com/Contentstore/MktgContent/LinkedDocuments/Force-Torque/RS_Fast_Assemby_Lowres.pdf
  • Measurement Range: 500 lb-ft (678 Nm)
  • Sensitivity: (output at rated capacity)2 mV/V

Specification Notes


[1] Nominal.
[2] FS - Full Scale.
[3] Matched for mV/V and shunt calibration.
[4] See Drawing 50933 for Complete Dimensions
[5] 2 mV/V with 43.575 kOhm precision resistor.
[4] See Drawing 50933 for Complete Dimensions
[6] See PCB Declaration of Conformance PS117 for details.

English: SI:
Performance
Measurement Range (Full Scale Capacity) 500 lb-ft 678 Nm
Sensitivity (output at rated capacity ) (0.25%FS) 2 mV/V 2 mV/V [1]
Non-Linearity ±0.25 % FS ±0.25 % FS [2]
Hysteresis ±0.25 % FS ±0.25 % FS [2]
Interchangeabilty ±0.3%F.S. ±0.3%F.S. [3]
Overload Capacity 150%F.S. 150%F.S.
Drive Size 3/4 inch Square 3/4 inch Square [4]
Quadrature Output 2950 Counts/Rev 2950 Counts/Rev [1]
Quadrature Output Voltage 0 to 5V 0 to 5V
Angle Resolution 0.125 degrees 0.125 degrees
Environmental
Temperature Range (Operating) 0 to 200 °F -18 to +93 °C
Temperature Range (Compensated) +70 to 150 °F +21 to 66 °C
Temperature Effect on Output (Maximum) ±0.01 %RO/°F ±0.018 %RO/°C
Temperature Effect on Zero Balance (Maximum) ±0.01 %FS/°F ±0.018 %FS/°C
Electrical
Bridge Resistance 350 Ohm 350 Ohm
Excitation Voltage (Recommended) 10 VDC or VAC rms 10 VDC or VAC rms
Zero Balance ±2 % FS ±2 % FS
Shunt Calibration 2mV/V 2mV/V [5]
Angle Power +5 VDC +5 VDC
Output Polarity cw+ cw+
Isolation Resistance ≥1G Ohm ≥1G Ohm
Physical
Size - Length 45.63 in 1159 mm [4]
Weight 6.5 lb 3.0 kg
Mating Connector PT06A-12-10S PT06A-12-10S
Connector DT02H-12-10P DT02H-12-10P
Color Code Gray Gray
Socket Retaining Type Ball/Spring Ball/Spring

* All specifications are at room temperature unless otherwise specified.

Accessories


Optional
080962-01000 Model 962 Portable Transient Recorder, complete with FastPlot2 data transfer software, 8GB USB Memory Drive, USB cable for data upload/download, battery charger, and carrying case 1
097000-34445 Cable, Coiled, 3-ft, RS Instrument to 10-pin Transducers 1
4242R-000630 1
Supplied
7122R-04352A Precision Cal Resistor 43.575K Ohm 1
Optional
080922-01000 Model 922 Portable Digital Peak Meter for measuring torque, torque and angle, or load measurement. Click-wrench calc feature and multi-limit sets. Complete with battery charger, data transfer software, and instruction manual 0
