fatigue load cell, low profile, 12.5 kn rated capacity, 100% static overload protection, 1.5mv/v output, m16x2-4h female thread, pc04e-10-6p connector, steel construction

Strain Gage Load Cell

Model M1403-04B

Add to Quote
  • IP

Fatigue load cell, low profile, 12.5 kN rated capacity, 100% static overload protection, 1.5mV/V output, M16x2-4H female thread, PC04E-10-6P connector, steel construction

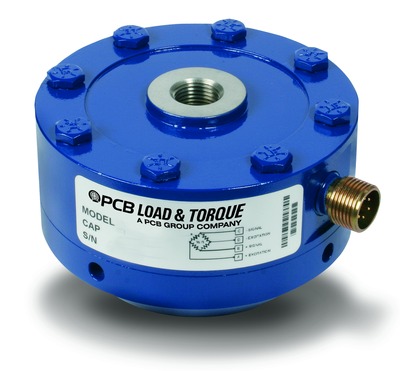

The load cell pictured shows the load cell with a load or tension base. The load/tension base is a recommended option and is sold separately.

    Specification Notes

    [1] FS - Full Scale.
    [2] RO - Rated Output.
    [3] Singularly applied, i.e. no other extraneous loads.
    [4] Over compensated operating temperature range.
    [5] Nominal.
    [6] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.

    English: SI:
    Performance
    Measurement Range (100 x 10^6 cycles) 2810 lb 12.5 kN [1]
    Sensitivity (±10 %) 1.5 mV/V 1.5 mV/V [2]
    Non-Linearity ≤0.05 % FS ≤0.05 % FS
    Hysteresis ≤0.05 % FS ≤0.05 % FS
    Non-Repeatability ≤0.02 %RO ≤0.02 %RO
    Creep 0.03 % 0.03 %
    Resonant Frequency 7.0 kHz 7.0 kHz
    Environmental
    Overload Limit 5000 lb 22 kN
    Load Limit (Side Force, FX or FY) 2500 lb 11 kN [3]
    Load Limit (Bending Moment, MX or MY) 2500 in-lb 282 Nm [3]
    Load Limit (Axial Torque, MZ) 2500 in-lb 282 Nm [3]
    Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
    Temperature Range (Compensated) +70 to +170 °F +21 to +77 °C
    Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0036 %Reading/°C [4]
    Temperature Effect on Zero Balance (Maximum) ±0.001 %FS/°F ±0.0018 %FS/°C [4]
    Electrical
    Bridge Resistance 700 Ohm 700 Ohm [5]
    Excitation Voltage (Recommended) 10 VDC 10 VDC [6]
    Insulation Resistance >5000000000 Ohm >5000000000 Ohm
    Zero Balance ≤1 %RO ≤1 %RO
    Physical
    Size - Height 1.37 in 34.8 mm
    Size - Diameter 4.12 in 104.6 mm
    Weight 2.88 lb 1.31 kg
    Mounting Thread No English Equivalent M16 x 2-4H Female
    Housing Material Painted Steel Painted Steel
    Sensing Element Strain Gage Strain Gage
    Mounting Torque 200 in-lb 23 Nm
    Deflection at Full Scale Capacity 0.001 in 0.03 mm
    Electrical Connector PC04E-10-6P PC04E-10-6P
    Electrical Connection Position Side Side

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Optional
    182-025A PC06A-10-6S (SR) 1
    8315-01-10A 4-conductor, PC06W-10-6S to pigtails cable, 10-ft, for Load Cells with PC connector (& 8162 Series), <20 ft 1
    M084A100 Tension Load Base w/ M16x2 1
