18 channel (6 triax) rotary triax switch box

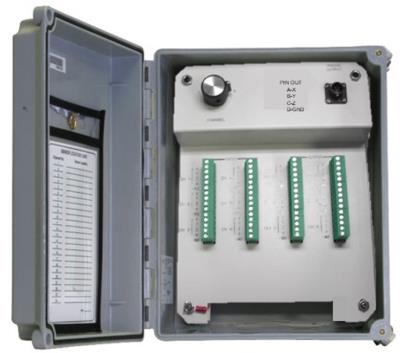

18 CH (6 TRIAX) SWITCH BOX

Model 691A84

Add to Quote
  • CE
  • IP

18 Channel (6 Triax) Rotary Triax Switch Box

  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes

[1] Typical.
[2] See PCB Declaration of Conformance PS152 for details.

English: SI:
Performance
Channels (Tri-Ax) 6 6
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Output) 4-Pin Bayonet 4-Pin Bayonet
Electrical Connector (Output) Terminal Block Terminal Block
Electrical Connector (Input) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size - Height 10 in 254 mm
Size - Width 8 in 203 mm
Size - Depth 6 in 152 mm
Weight 4.8 lb 2.1 kg [1]

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
080A192 4-position terminal block for use with model 691B40 1

Optional Versions

(PS) Painted Steel

English SI
Enclosure Rating Nema 12 IP65
Weight 7 lb 3.2 kg
Size - Height 10 in 254 mm
Size - Width 8 in 203 mm
Size - Depth 4 in 101 mm

(SS) Stainless Steel Enclosure

English SI
Size - Height 10 in 254 mm
Size - Width 8 in 203 mm
Size - Depth 4 in 101 mm
Weight 8.8 lb 4 kg
