| Performance |
| Gain (re 1 kHz) |
±0.3 dB |
±0.3 dB |
[1]
|
| Frequency Response (±0.5 dB) (A-weighted, re 1 kHz) |
50 to 8000 Hz |
50 to 8000 Hz |
[1]
|
| Frequency Response (±1.0 dB) (A-weighted, re 1 kHz) |
20 to 20000 Hz |
20 to 20000 Hz |
[1]
|
| Electrical Noise (Flat 20 Hz to 20 kHz) |
<25 µV |
<25 µV |
[1]
|
| Electrical Noise (1 kHz, 1/3 octave band) |
<2.8 µV |
<2.8 µV |
[1]
|
| Distortion (2 V rms input at 1 kHz) |
<-57 dB |
<-57 dB |
|
| Environmental |
| Temperature Range (Operating) |
-40 to +149 °F |
-40 to +65 °C |
|
| Temperature Response |
±0.5 dB |
±0.5 dB |
|
| Humidity Range (Non-Condensing) |
0 to 95 %RH |
0 to 95 %RH |
|
| Humidity Sensitivity |
±0.5 dB |
±0.5 dB |
|
| Electrical |
| Excitation Voltage (Required) |
24 to 32 VDC |
24 to 32 VDC |
|
| Constant Current Excitation (Required) |
4 to 20 mA |
4 to 20 mA |
|
| Constant Current Excitation (To Preamplifier) |
0.75 mA |
0.75 mA |
[2]
[3]
|
| Impedance (Input) |
30 kohm |
30 kohm |
[2]
|
| Impedance (Output) |
50 Ohm |
50 Ohm |
[2]
|
| Output Voltage (Maximum) |
3.5 Vpk |
3.5 Vpk |
|

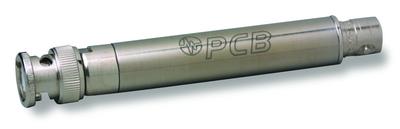

| Physical |
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Size - Diameter |
0.57 in |
14.5 mm |
|
| Size - Length |
3.66 in |
93 mm |
|
| Electrical Connector (Input) |
BNC Plug |
BNC Plug |
|
| Electrical Connector (Output) |
BNC Jack |
BNC Jack |
|
