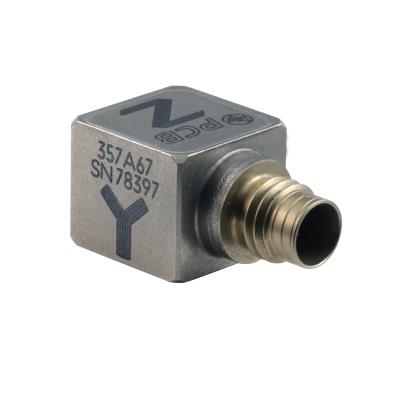

Triaxial Charge Output Accelerometer

Model 357A67

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

Triaxial Charge Accelerometer, 0.40 x 0.45 inch, 3.0 pC/g, M3 thread, 4-pin conn

Sensitivity: (±15%)3.0 pC/g (0.306 pC/(m/s²))
Measurement Range: ±1000 g pk (±9800 m/s² pk)
Frequency Range: (±10%)1 to 10000 Hz
Temperature Range: -76 to +392 °F (-60 to +200 °C)
Electrical Connector: 1/4-28 4-Pin
Weight: 0.17 oz (4.9 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Mounted on base.
[4] Verified amplitude response during calibration with reduced useful frequency response on the x and y axes due to mounting on a surface other than the base.
[5] Typical.
[6] Accel from structure into sensor base.
[5] Typical.
[7] See PCB Declaration of Conformance PS158 for details.

	English:	SI:
Performance
Sensitivity (±15 %)	3.0 pC/g	0.306 pC/(m/s²)
Measurement Range	±1000 g pk	±9800 m/s² pk
Frequency Range (±10 %) (x or y axis)	1 to 10000 Hz	1 to 10000 Hz	[2] [3]
Frequency Range (±10 %) (z axis)	1 to 12800 Hz	1 to 12800 Hz	[2] [3]
Frequency Range (±10 %) (x or y axis)	1 to 5500 Hz	1 to 5500 Hz	[2] [4]
Resonant Frequency	≥45 kHz	≥45 kHz
Non-Linearity	≤2 %	≤2 %	[1]
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±5000 g pk	±49000 m/s² pk
Temperature Range	-76 to +392 °F	-60 to +200 °C
Temperature Range (Survivable Limit)	-76 to +500 °F	-60 to +260 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[5]
Base Strain Sensitivity	0.05 g/µε	0.5 (m/s²)/µε	[5]
Electrical
Capacitance	650 pF	650 pF	[5]
Insulation Resistance (at 70° F [21° C])	>100000000000 Ohm	>100000000000 Ohm
Insulation Resistance (at 500°F [260°C])	>100000000 Ohm	>100000000 Ohm	[5]
Electrical Isolation (Case)	≥100000000 Ohm	≥100000000 Ohm
Output Polarity	Negative	Negative	[6]
Physical
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Size - Length	0.78 in	19.8 mm
Size - Width	0.45 in	11.4 mm
Size - Height	0.40 in	10.2 mm
Weight	0.17 oz	4.9 gm	[5]
Electrical Connector	1/4-28 4-Pin	1/4-28 4-Pin
Mounting Thread	M3 x 0.50 Female	M3 x 0.50 Female
Mounting Torque	4.0 to 5.0 in-lb	45 to 55 N-cm

* All specifications are at room temperature unless otherwise specified.

Accessories


Optional
523R10	3-coax, 34 awg (7/42), twisted bundle, low noise, PFA cable, 10-ft, 1/4-28 4-socket, shell isolated plug, 200C rated to triple splice assembly with (3) 4.5-in coaxial cables each with a 10-32 plug (EB) for charge triax sensors	0
Supplied
081A134	Mounting stud, M3 to 10-32, for 357A67	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
ACS-44T	Extended Frequency Response Calibration to +10% point on a triax accel, (requires ACS-1T)	1
M081A134	Mounting stud, M3 to M3, for 357A67	1
