link icp® quartz force sensor, 35k lb comp., 12k lb tension, 0.14 mv/lb

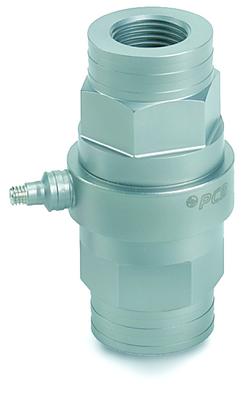

Force Sensor, ICP®

Model 225C

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Link ICP® quartz force sensor, 35k lb comp., 12k lb tension, 0.14 mV/lb

  • Measurement Range: 35000 lb (155.69 kN)
  • Sensitivity: (±15%)0.14 mV/lb (31.47 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 6000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 3/4 - 16 Female

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 0.14 mV/lb 31.47 mV/kN
Measurement Range (Compression) 35000 lb 155.69 kN
Measurement Range (Tension) 12000 lb 53.38 kN
Maximum Static Force (Compression) 42500 lb 189.05 kN
Maximum Static Force (Tension) 15000 lb 66.73 kN
Broadband Resolution (1) 0.1 lb-rms 0.445 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 6000 Hz 6000 Hz [4]
Non-Linearity ≤1.5 % FS ≤1.5 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.0204 lb/√Hz 0.0911 N/√Hz [2]
Spectral Noise (10 Hz) 0.00986 lb/√Hz 0.0440 N√Hz [2]
Spectral Noise (100 Hz) 0.00328 lb/√Hz 0.0146 N/√Hz [2]
Spectral Noise (1000 Hz) 0.00110 lb/√Hz 0.00491 N/√Hz [2]
Output Polarity (Compression) Positive Positive
Physical
Stiffness 6 lb/µin 1.05 kN/µm [2]
Size - Diameter 1.58 in 40.13 mm
Size - Height 3.00 in 76.2 mm
Weight 14.5 oz 412 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 3/4 - 16 Female 3/4 - 16 Female

* All specifications are at room temperature unless otherwise specified.

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
