MINIATURE ELETRODYNAMIC SHAKERS

Model 2007E

Add to Quote
  • IP

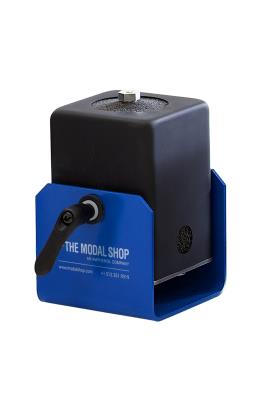

Miniature Shaker, 7lbf rated sine force, 0.5" pk-pk stroke, weighs only 6 pounds and can support payloads up to 2 lbs. Includes trunion mounting base and 2110G06 stinger kit.

For more information visit www.modalshop.com
  • Output Force, sine pk: 7 lbf (31 N)
  • Stroke Length: 0.5 in (13 mm)
  • Frequency Range: DC-9 kHz
  • Weight: 6 lb (2.72 kg)
  • Table Mounting: 10-32 thread

Specification Notes

[1] Load Dependent
[2] Please see systems ratings for additional specs

English: SI:
Performance
Output Force, sine pk (Natural Air Cooling) 7 lbf 31 N
Output Force, random RMS (Natural Air Cooling) 5 lbf 22 N
Output Force, shock pk 15 lbf 67 N
Stroke Length (Continuous pk-pk) 0.5 in 13 mm
Stroke Length (Between Stops) 0.55 in 14 mm
Frequency Range DC-9 kHz DC-9 kHz [1]
Acceleration (No Load) 70 g pk 70 g pk [1] [2]
Acceleration (0.1 lb (0.045 kg) load) 35 g pk 35 g pk [1] [2]
Acceleration (1 lb (0.454 kg) load) 6.4 g pk 6.4 g pk [1] [2]
Acceleration (2 lb (0.907 kg) load) 3.3 g pk 3.3 g pk [1] [2]
Maximum Current 8 A 8 A
DC Resistance, armature (nominal) 0.37 Ω 0.37 Ω
Protection Features Over-current (in-line fuse) Over-current (in-line fuse)
Physical
Armature Weight 0.1 lb 0.045 kg
Suspension Stiffness 15 lbf/in 2.63 N/mm
Size - Height (Nominal) 5.3 in 135 mm
Size - Width (Nominal) 6.75 in 171 mm
Size - Depth (Nominal) 3.5 in 89 mm
Weight 6 lb 2.72 kg
Table Mounting 10-32 thread 10-32 thread
Electrical Connector (Integral cable to ring terminals) 7 ft 2.13 m

* All specifications are at room temperature unless otherwise specified.
