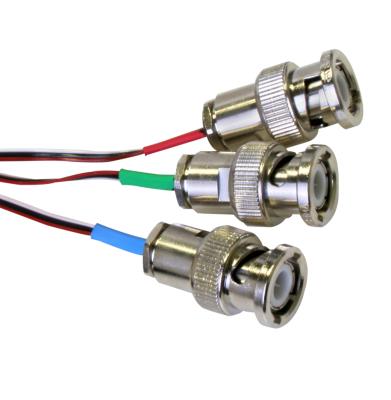

(3) bnc plugs (for use in 009m202 series)

Cable Connector

Model PE

$178.00 (USD)

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

(3) BNC plugs (for use in 009M202 Series)

  • Connector Style: BNC
  • Connector Style: Circular
  • Connection Type: Plug (male pin)
  • Temperature Range: -40 to 221 °F (-40 to 105 °C)

Specification Notes

English: SI:
Performance
Connector Style BNC BNC
Connector Style Circular Circular
Connection Type Plug (male pin) Plug (male pin)
Coupling Method (Locking) Bayonet Bayonet
Strain Relief Potted Potted
Environmental
Temperature Range -40 to 221 °F -40 to 105 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance 5000 MOhm 5000 MOhm
Physical
Electrical Connections (Shell) Ground Ground
Electrical Connections (Center Pin) Signal/Power Signal/Power
Housing Material Brass Brass
Finish Nickel Coated Nickel Coated
Size - OD .57 in 14 mm
Size - Length 1.1 in 28 mm
Weight 0.51 oz 14 gm

* All specifications are at room temperature unless otherwise specified.
