modal array, ceramic shear icp® accel, 100 mv/g, 2 to 1k hz, 3-pin conn mtg block, cable/connector not included.

Accelerometer, ICP®

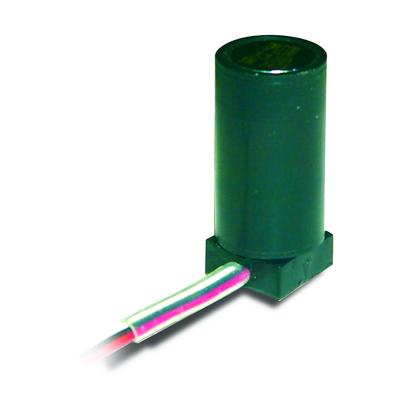

Model 333B

  • IP

Modal array, ceramic shear ICP® accel, 100 mV/g, 2 to 1k Hz, 3-pin conn mtg block, cable/connector not included.

Cable assembly to be used is model 009M202/XXXCC, where "XXX" delineates the length in feet (prefix the model with an "M" for meters) and "CC" delineates whether it terminates to the PD or PE connectors.
  • Sensitivity: (±20%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490 m/s² pk)
  • Broadband Resolution: 0.00007 g rms (0.0007 m/s² rms)
  • Frequency Range: (±5%)2 to 1000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.2 oz (5.6 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.

English: SI:
Performance
Sensitivity (±20 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 2 to 1000 Hz 2 to 1000 Hz
Resonant Frequency ≥5 kHz ≥5 kHz
Phase Response (±5 °) 2 to 1000 Hz 2 to 1000 Hz
Broadband Resolution (1) 0.00007 g rms 0.0007 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit (Shock) ±3500 g pk ±34300 m/s² pk
Temperature Range 0 to 150 °F -18 to +66 °C
Temperature Response 0.15 %/°F 0.27 %/°C [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.7 to 1.3 sec 0.7 to 1.3 sec
Spectral Noise (10 Hz) 4.3 µg/√Hz 42.1 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 1.3 µg/√Hz 12.8 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 0.6 µg/√Hz 5.9 (µm/sec2)/√Hz [2]
Physical
Weight 0.2 oz 5.6 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Polymer Polymer
Sealing Hermetic Hermetic
Size - Diameter 0.48 in 12.2 mm
Electrical Connector 3-Pin Socket 3-Pin Socket

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
ACS-2 Single axis, one-point at 100 Hz, amplitude response calibration, NIST traceable 1

Optional Versions


(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 8.5 to 13 VDC

(TLA) TEDS LMS International - Free Format

English SI
Output Bias Voltage 8.5 to 13 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Output Bias Voltage 8.5 to 13 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Output Bias Voltage 8.5 to 13 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Output Bias Voltage 8.5 to 13 VDC
