(3) 3-pin idc connectors and strain relief (for use in 009m202 series)

Cable Connector

Model PD

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

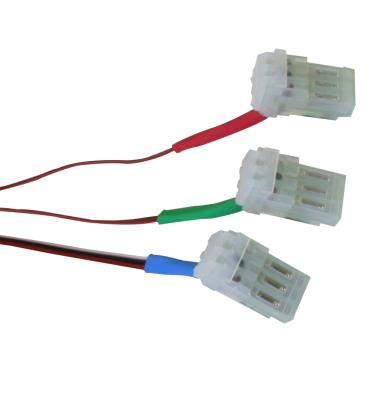

(3) 3-pin IDC connectors and strain relief (for use in 009M202 Series)

  • Connector Style: Multi-conductor
  • Connection Type: Plug with Female Contact
  • Connection Type: 3-socket
  • Temperature Range: -67 to 221 °F (-55 to 105 °C)

Specification Notes

English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type Plug with Female Contact Plug with Female Contact
Connection Type 3-socket 3-socket
Coupling Method (Keyed) Push On Push On
Strain Relief Clamp Clamp
Environmental
Temperature Range -67 to 221 °F -55 to 105 °C
Physical
Electrical Connections (Contact 2) Black Black
Electrical Connections (Contact 3) Red Red
Electrical Connections (Contact 1) White White
Housing Material Nylon Nylon
Size - Length .57 in 14.5 mm
Size - Height .27 in 6.9 mm
Size - Width .30 in 7.62 mm
Weight .032 oz .91 gm

* All specifications are at room temperature unless otherwise specified.
