DigiDAQ™ Digital ICP® - USB Signal Conditioner

Portable ICP® Sensor Digitization

ICP-USB Signal Conditioner Model 485B39

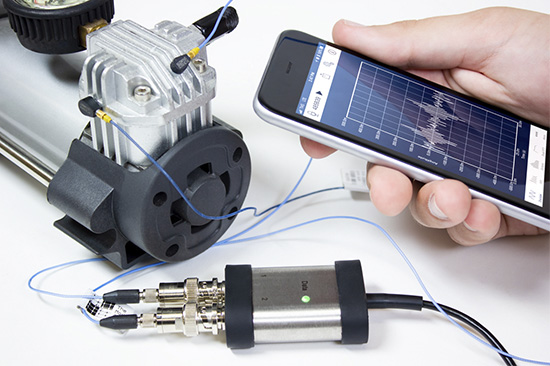

The DigiDAQ™ Model 485B39 from The Modal Shop offers plug-and-play connectivity for your measurements. DigiDAQ is a pocket-sized, dual-channel ICP or mixed ICP/Voltage to USB digital signal conditioner. The unit provides any ICP sensor – accelerometers, microphones, impact hammers, laser tachometers, and more – with a digital USB output. It is truly plug-and-play, with no drivers required. DigiDAQ features two BNC inputs and a 24-bit USB digital signal output, allowing a direct connection from the sensor to any PC, tablet, or smartphone device for easy data collection, analysis, and sharing on-the-go.

Highlights

  • Plug & play, Portable sensor digitization to acquire, save, and share data on the go
  • High-quality, 24-bit, broad-frequency measurements
  • Compatible with Python, MATLAB®, LabVIEW&trade, and a variety of time and frequency signal analysis programs
  • 2-channel ICP® (IEPE) sensor inputs, and also available with voltage or mixed voltage/ICP inputs as models
  • Available with cable terminating in USB-A or USB-C

Applications

  • General dynamic signal digitizing
  • Binaural recordings
  • Sound & vibration measurements: isolation, transmissibility, correlation studies, and resonance testing
  • Industrial IoT applications
  • Educational laboratory experiments

The DigiDAQ™ can be used in a variety of applications such as binaural recordings, transmissibility studies, impact testing, correlation methods, and educational laboratory experiments. DigiDAQ’s USB Class 1 Audio Digital Output offers direct compatibility with MATLAB®, LabVIEW™, Python, and a variety of third party signal analysis programs running on Windows, iOS, Android, macOS, or Linux platforms. The small form factor, versatility, and open software options also make this a perfect tool for integration with Industrial IoT (Internet of Things) systems and custom applications.

Ordering Options

  • 485B39 – ICP Inputs, USB-A Connector
  • V485B39 – Voltage Inputs (No ICP Supply Current), USB-A Connector
  • IV485B39 – ICP (CH 1), Voltage (CH 2), USB-A Connector
  • 485B39-C – ICP Inputs, USB-C Connector
  • V485B39-C – Voltage Inputs (No ICP Supply Current), USB-C Connector
  • IV485B39-C – ICP (CH 1), Voltage (CH 2), USB-C Connector
