triaxial, general purpose, ceramic shear icp® accel., 25 mv/g, 1 to 5k hz, 4-pin conn. with teds compliant with ieee 1451.4

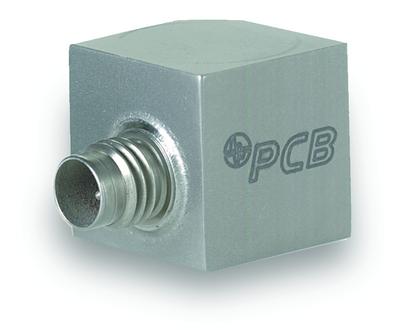

Accelerometer, ICP®, Triaxial

Model TLD356A25

  • CE
  • IP

Triaxial, general purpose, ceramic shear ICP® accel., 25 mV/g, 1 to 5k Hz, 4-pin conn. with TEDS Compliant with IEEE 1451.4

  • Sensitivity: (±10%)25 mV/g (2.6 mV/(m/s²))
  • Measurement Range: ±200 g pk (±1960 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Valid from +250 to +325 °F (+121 to +163 °C), with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 25 mV/g 2.6 mV/(m/s²)
Measurement Range ±200 g pk ±1960 m/s² pk
Frequency Range (±5 %) 1 to 5000 Hz 1 to 5000 Hz
Frequency Range (±10 %) 0.5 to 6500 Hz 0.5 to 6500 Hz
Resonant Frequency ≥25 kHz ≥25 kHz
Broadband Resolution (1) 0.0002 g rms 0.002 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±7000 g pk ±68600 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F
Base Strain Sensitivity 0.001 g/µε 0.01 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.5 to 2.0 sec 0.5 to 2.0 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 70 µg/√Hz 686 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 15 µg/√Hz 147 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 5 µg/√Hz 49 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 3 µg/√Hz 29.4 (µm/sec2)/√Hz [2]
Spectral Noise (10 kHz) 2 µg/√Hz 19.6 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.37 oz 10.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 10 to 20 113 to 225

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A12 Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insolation hardcoat finish 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1

Optional Versions


(HT) High temperature, extends normal operation temperatures

English SI
Frequency Range (&#177;10 %) 1.4 to 6500 Hz 1.4 to 6500 kHz
Broadband Resolution 0.0003 g rms 0.003 µm/sec2 rms
Temperature Range -65 to +325 °F -54 to +163 °C
Discharge Time Constant 0.1 to 0.6 sec
Spectral Noise 190 µg/√Hz 1864 (µm/sec2)/√Hz
Spectral Noise 35 µg/√Hz 345 (µm/sec2)/√Hz
Spectral Noise 20 µg/√Hz 196 (µm/sec2)/√Hz
Spectral Noise 3 µg/√Hz 29.4 (µm/sec2)/√Hz
Output Bias Voltage 7 to 16 VDC
Excitation Voltage 23 to 30 VDC
Frequency Range (&#177;5 %) 2 to 5000 Hz 2 to 5000 kHz

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Temperature Range -10 to +200 °F -23 to +93 °C
Output Bias Voltage 8.5 to 13 VDC
Excitation Voltage 20 to 30 VDC

(TLA) TEDS LMS International - Free Format

English SI
Temperature Range -10 to +200 °F -23 to +93 °C
Output Bias Voltage 8.5 to 13 VDC
Excitation Voltage 20 to 30 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Temperature Range -10 to +200 °F -23 to +93 °C
Output Bias Voltage 8.5 to 13 VDC
Excitation Voltage 20 to 30 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Temperature Range -10 to +200 °F -23 to +93 °C
Output Bias Voltage 8.5 to 13 VDC
Excitation Voltage 20 to 30 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Excitation Voltage 20 to 30 VDC
Temperature Range -10 to +200 °F -23 to +93 °C
Output Bias Voltage 8.5 to 13 VDC

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Integral Cable
