modal array, ceramic shear icp® accel, 100 mv/g, 0.5 to 3k hz, 10-32 side conn., adhesive mount, teds version 1.0

Accelerometer, ICP®

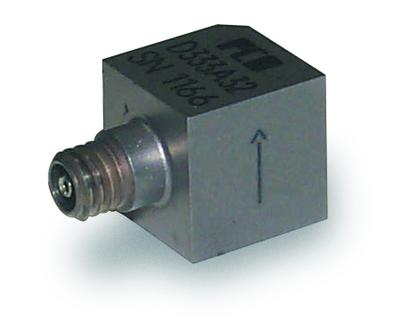

Model TLD333B32

Add to Quote
  • CE
  • IP

Modal array, ceramic shear ICP® accel, 100 mV/g, 0.5 to 3k Hz, 10-32 side conn., adhesive mount, TEDS version 1.0

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490 m/s² pk)
  • Broadband Resolution: 0.00015 g rms (0.0015 m/s² rms)
  • Frequency Range: (±5%)0.5 to 3000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.14 oz (4.0 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 0.5 to 3000 Hz 0.5 to 3000 Hz
Resonant Frequency ≥40 kHz ≥40 kHz
Phase Response (±5 °) (at 70°F [21°C]) 2 to 3000 Hz 2 to 3000 Hz
Broadband Resolution (1) 0.00015 g rms 0.0015 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range (Operating) 0 to +150 °F -18 to +66 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity 0.01 g/µε 0.1 (m/s²)/µε [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤300 Ohm ≤300 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.0 sec 1.0 to 3.0 sec
Spectral Noise (10 Hz) 11 µg/√Hz 110 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 3.4 µg/√Hz 33 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 1.4 µg/√Hz 14 (µm/sec2)/√Hz [2]
Physical
Size - Length 0.63 in 16.0 mm
Size - Width 0.40 in 10.2 mm
Weight 0.14 oz 4.0 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1

Optional Versions

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 7.5 to 13 VDC
Excitation Voltage 19 to 30 VDC

(TLA) TEDS LMS International - Free Format

English SI
Output Bias Voltage 7.5 to 13 VDC
Excitation Voltage 19 to 30 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Output Bias Voltage 7.5 to 13 VDC
Excitation Voltage 19 to 30 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Output Bias Voltage 7.5 to 13 VDC
Excitation Voltage 19 to 30 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Excitation Voltage 19 to 30
Output Bias Voltage 7.5 to 13
