3-socket, hi-temp to 325 deg f, molded

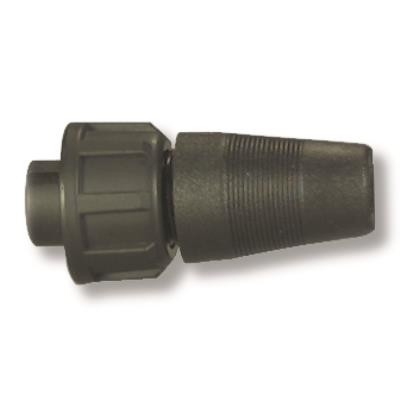

Cable Connector

Model QK

  • IP

3-socket, Hi-Temp to 325 deg F, molded

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 3-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -67 to +356 °F (-55 to +180 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 3-socket 3-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to +356 °F -55 to +180 °C
Physical
Size - OD 0.83 in 21.08 mm
Size - Length 2.44 in 61.98 mm
Weight 0.65 oz 18.4 gm

* All specifications are at room temperature unless otherwise specified.
