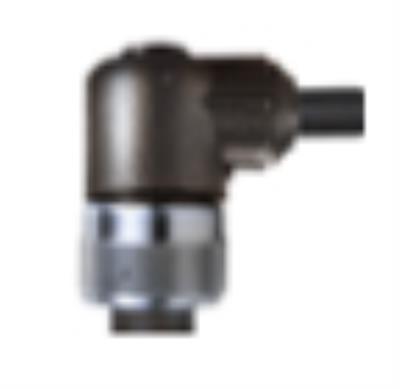

2-socket right angle high temperature (+356 f) pps connector with stainless steel collar and fkm heat shrink strain relief   **not field installable, no individual sales**

Cable Connector

Model PB

  • IP

2-socket right angle high temperature (+356 F) PPS connector with stainless steel collar and FKM heat shrink strain relief **Not field installable, no individual sales**

  • Connector Style: MIL-C-5015
  • Connector Style: Right Angle
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -67 to +356 °F (-55 to +180 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Right Angle Right Angle
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to +356 °F -55 to +180 °C
Physical
Size - OD 0.75 in 19.1 mm
Size - Length 1.63 in 41.4 mm
Size - Height 1.50 in 38.1 mm
Weight 0.65 oz 18.4 gm

* All specifications are at room temperature unless otherwise specified.
