triax force link, icp®, 25 lb (fz), 10 lb (fx,y), 100 mv/lb (z), 500 mv/lb (x,y), ground isolated

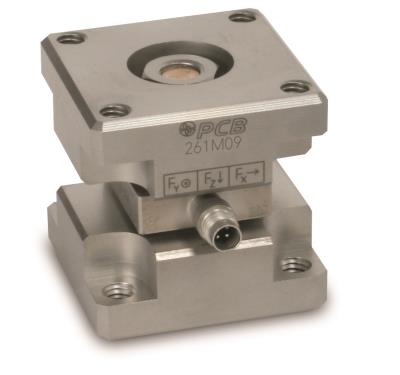

3-Component ICP® Force Sensor

Model M261M09

Add to Quote
  • CE
  • IP

Triax force link, ICP®, 25 lb (Fz), 10 lb (Fx,y), 100 mV/lb (z), 500 mV/lb (x,y), ground isolated

  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Electrical Connector: 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB White Paper WPL_88_1121 for details.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) (Z Axis) 100 mV/lb 22.5 mV/N
Sensitivity (±20 %) (X or Y Axis) 500 mV/lb 112 mV/N
Measurement Range (Z Axis) 25 lb 0.111 kN
Measurement Range (X or Y Axis) 10 lb 0.044 kN
Maximum Force 300 lb 1.334 kN
Maximum Force (X or Y Axis) 60 lb 0.267 kN
Maximum Moment (Z Axis) 14 ft-lb 19.0 Nm
Maximum Moment (X or Y Axis) 13 ft-lb 17.6 Nm
Broadband Resolution (Z Axis) 0.0003 lb-rms 0.0133 N-rms [2]
Broadband Resolution (X or Y Axis) 0.00004 lb-rms 0.0002 N-rms [2]
Low Frequency Response (-5 %) (Z-Axis) 0.01 Hz 0.01 Hz
Low Frequency Response (-5 %) (X or Y Axis) 0.01 Hz 0.01 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
Discharge Time Constant (Z Axis) ≥50 sec ≥50 sec
Discharge Time Constant (X or Y Axis) ≥50 sec ≥50 sec
Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Electrical Isolation (Base) ≥100000000 ≥100000000
Physical
Stiffness (X or Y Axis) 1.9 lb/µin 330 N/µm [2]
Stiffness (Z Axis) 4.9 lb/µin 860 N/µm [2]
Stiffness (RX or RY Axis) 7.5E5 lbf*in/radian 8.5E4 N*m/radian [2] [3]
Stiffness (RZ Axis) 3.4E5 lbf*in/radian 3.8E4 N*m/radian [2] [3]
Coupled Stiffness (X-RY or Y-RX Axis) 1.0 lbf*in/µin 4.4 N*m/µm [2] [3]
Weight 13.60 oz 386 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side
