triple splice assembly with (3) 1-ft coaxial cables each with a bnc plug (ac connector)

Cable Connector

Model JW

Add to Quote
  • IP

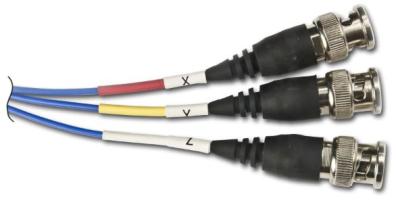

Triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC connector)

See Model NF for a grounded shield triple splice assembly.


Protective Cap: 085A35


  • Connector Style: Triple Splice
  • Connector Style: BNC
  • Connection Type: Plug (male pin)
  • Temperature Range: -67 to 230 °F (-55 to 110 °C)

Specification Notes

English: SI:
Performance
Connector Style Triple Splice Triple Splice
Connector Style BNC BNC
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Bayonet Bayonet
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to 230 °F -55 to 110 °C
Physical
Electrical Connections X axis X axis
Electrical Connections Y axis Y axis
Electrical Connections Z axis Z axis
ROHS Compliant Yes Yes
Size - Length 12 in 30.5 cm

* All specifications are at room temperature unless otherwise specified.
