6-pin fischer style connector for use with dli data collectors

Cable Connector

Model HM

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

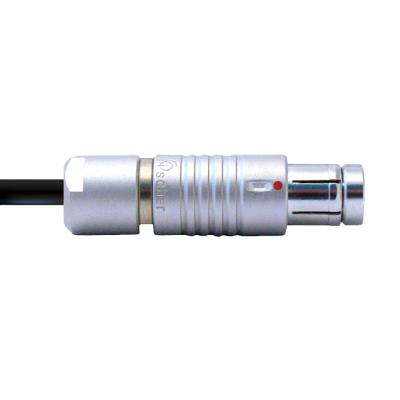

6-pin Fischer style connector for use with DLI data collectors

  • Connector Style: Circular
  • Connector Style: Multi-conductor
  • Connection Type: 6-pin
  • Connection Type: Plug (male pin)
  • Temperature Range: -85 to +266 °F (-65 to +130 °C)

Specification Notes

[1] Additional cable strain relief sleeve/boot (material : TPE), with a temperature rating of -60°C to +100°C (-76°F to +212°F), is provided with cable models 003, 042, 062, and 097.
[2] Typical.

English: SI:
Performance
Connector Style Circular Circular
Connector Style Multi-conductor Multi-conductor
Connection Type 6-pin 6-pin
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Push-Pull Push-Pull
Strain Relief Clamp Clamp [1]
Environmental
Temperature Range -85 to +266 °F -65 to +130 °C [1]
Physical
Size - OD 0.47 in 12.00 mm [2]
Size - Length 1.81 in 46.00 mm [2]
Weight 0.87 oz 24.66 gm [2]

* All specifications are at room temperature unless otherwise specified.
