high temperature, intrinsically safe, charge mode accelerometer, 100 pc/g sensitivity, 500 degree f, 10 ft integral cable.

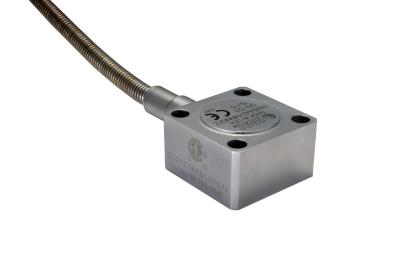

HIGH TEMPERATURE Industrial Accelerometer

Model EX615A42

$3095.00 (USD)

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • EX
  • IP

High temperature, intrinsically safe, charge mode accelerometer, 100 pC/g sensitivity, 500 degree F, 10 ft integral cable.

  • Sensitivity: (±5%)100 pC/g (10.2 pC/(m/s²))
  • Measurement Range: +/-200 g pk (+/-2000 m/s² pk)
  • Frequency Range: (±5%)5 kHz (5 kHz)
  • Weight: 6.7 oz (190 gm)

Additional configurations:

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] Typical.
[5] Transverse sensitivity is typically ≤ 3%.
[4] Typical.

English: SI:
Performance
Sensitivity (±5 %) 100 pC/g 10.2 pC/(m/s²) [1]
Measurement Range +/-200 g pk +/-2000 m/s² pk
Frequency Range (±5 %) 5 kHz 5 kHz [2]
Frequency Range (±10 %) 6 kHz 6 kHz
Resonant Frequency >20 kHz >20 kHz [4]
Non-Linearity (<200 g pk) ±1 % ±1 % [3]
Transverse Sensitivity <5 % <5 % [5]
Environmental
Overload Limit (Shock) 1000 g pk 9800 m/s² pk
Temperature Range -65 to +500 °F -54 to +260 °C
Temperature Response See Graph See Graph
Temperature Response +.03 %/°F +.06 %/°C [4]
Base Strain Sensitivity 0.003 g/µε 0.03 (m/s²)/µε [4]
Temperature Response See Graph See Graph
Enclosure Rating IP68 IP68
Electrical
Capacitance (Pin to Pin) 11100 pF 11100 pF [4]
Capacitance (with integral cable) 35 pF/ft 115 pF/m
Insulation Resistance (at room temp) ≥1000000000 Ohm ≥1000000000 Ohm
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Size - Height .89 in 23 mm
Size - Length 1.58 in 40 mm
Size - Width 1.58 in 40 mm
Weight (without cable) 6.7 oz 190 gm [4]
Mounting Through Holes (4) Through Holes (4)
Cable Length 10 ft 3 m
Cable Termination Pigtail Pigtail
Cable Type Armored 3-wire, low-noise PTFE cable Armored 3-wire, low-noise PTFE cable
Mounting Torque 11 ft-lb 15 Nm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 3
081C108 Mounting screw, 1/4-28 x 1, Inconel 718 4
