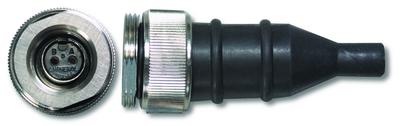

2-socket high temperature connector w/environmental boot, ss ring, & adaptor (mil-c-5015 compatible)

Cable Connector

Model EC

  • IP

2-socket high temperature connector w/environmental boot, SS ring, & adaptor (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Temperature Range: -67 to +325 °F (-55 to +163 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to +325 °F -55 to +163 °C
Physical
Size - OD 0.88 in 22 mm
Size - Length 2.62 in 66.55 mm
Weight 1.75 oz 49.70 gm

* All specifications are at room temperature unless otherwise specified.
