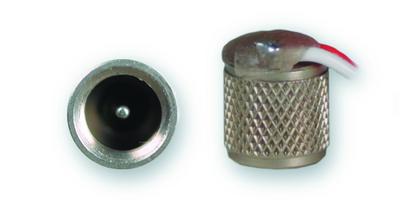

10-32 solder adaptor plug

CABLE CONNECTOR

Model AW

Add to Quote
  • IP

10-32 solder adaptor plug

Protective Cap: 085A18


  • Connector Style: Coaxial
  • Connection Type: Plug (male pin)
  • Coupling Thread: 10-32 female
  • Temperature Range: -67 to 500 °F (-55 to 260 °C)

Specification Notes

[1] Strain relieving wax and PVC cap are intended for use at temperatures from +32 to +144 °F (0 to +62 °C).

English: SI:
Performance
Connector Style Coaxial Coaxial
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 10-32 female 10-32 female
Environmental
Temperature Range -67 to 500 °F -55 to 260 °C [1]
Physical
Size - OD 0.25 in 6 mm
Size - Length 0.3 in 8 mm
Weight 0.04 oz 1.0 gm

* All specifications are at room temperature unless otherwise specified.
