triaxial, high sensitivity, ceramic shear icp® accel., 100 mv/g, 2 to 5k hz, titanium hsg, 4-pin conn., teds with lms automotive format

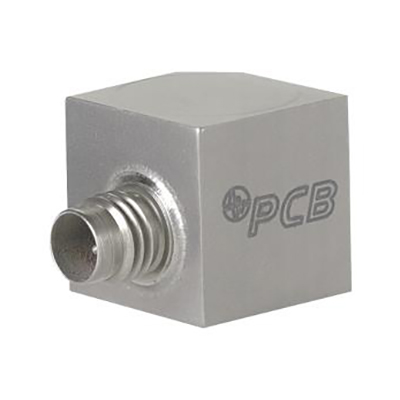

Accelerometer, ICP®, Triaxial

Model TLB356A15

Add to Quote
  • CE
  • IP

Triaxial, high sensitivity, ceramic shear ICP® accel., 100 mV/g, 2 to 5k Hz, titanium hsg, 4-pin conn., TEDS with LMS Automotive Format

  • Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk (±490 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] TEDS option adds 1.0 VDC to bias voltage.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 2 to 5000 Hz 2 to 5000 Hz
Frequency Range (±10 %) 1.4 to 6500 Hz 1.4 to 6500 Hz
Resonant Frequency ≥25 kHz ≥25 kHz
Broadband Resolution (1) 0.0002 g rms 0.002 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±7000 g pk ±68600 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C [3]
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity 0.001 g/µε 0.01 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Discharge Time Constant 0.2 to 0.8 sec 0.2 to 0.8 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 80 µg/√Hz 785 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 15 µg/√Hz 147 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 5 µg/√Hz 49 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 2 µg/√Hz 20 (µm/sec2)/√Hz [2]
Spectral Noise (10 kHz) 1 µg/√Hz 9.8 (µm/sec2)/√Hz [2]
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.37 oz 10.5 gm [2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
Mounting Torque 10 to 20 in-lb 113 to 225 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A12 Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insolation hardcoat finish 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081B05 Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu 1

Optional Versions

(A) Adhesive Mount
Accessories:
Supplied 080A109 Petro Wax 1
Supplied 080A90 Quick Bonding Gel 1

(HT) High temperature, extends normal operation temperatures

English SI
Frequency Range (&#177;5 %) 10 to 5000 Hz
Frequency Range (&#177;10 %) 7 to 6500 Hz
Temperature Range -65 to +325 °F -54 to +163 °C
Discharge Time Constant 0.03 to 0.1 sec
Broadband Resolution 0.0005 g rms 0.005 µm/sec2 rms
Spectral Noise 110 µg/√Hz 1080 (µm/sec2)/√Hz
Spectral Noise 50 µg/√Hz 491 (µm/sec2)/√Hz
Spectral Noise 30 µg/√Hz 294 (µm/sec2)/√Hz
Spectral Noise 10 µg/√Hz 98.1 (µm/sec2)/√Hz
Output Bias Voltage 7 to 16 VDC
Excitation Voltage 24 to 30 VDC

(J) Ground Isolated

English SI
Electrical Isolation >100000000 Ohm
Size - Height 0.59 in 15.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Mounting Adhesive
Weight 0.37 oz 10.5 gm

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 8.7 to 13.0 VDC

(TLA) TEDS LMS International - Free Format

English SI
Output Bias Voltage 8.7 to 13.0 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Output Bias Voltage 8.7 to 13.0 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Output Bias Voltage 8.7 to 13.0 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Output Bias Voltage 8.7 to 13.0
