pellet accelerometer

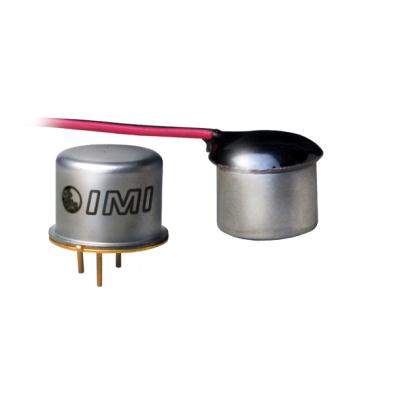

ICP® Low-Profile TO-5 Accelerometer

Model RH66102ANZ2

Add to Quote
  • CE
  • IP

Pellet accelerometer

  • Sensitivity: (±20%)10 mV/g (1.02 mV/(m/s²))
  • Frequency Range: (±3dB)0.5 to 10 kHz (0.5 to 10 kHz)
  • Sensing Element: Ceramic
  • Measurement Range: ±500 g (±5000 m/s²)
  • Weight: 0.08 oz (2.2 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Typical.
[5] Negative output along Z-axis (in upward direction when pin mounted).
[6] Performance depends on mounting
[4] Typical.
[7] See PCB Declaration of Conformance PS023 or PS060 for details.

English: SI:
Performance
Sensitivity (±20 %) 10 mV/g 1.02 mV/(m/s²) [1] [5]
Measurement Range ±500 g ±5000 m/s²
Frequency Range (±3 dB) 0.5 to 10 kHz 0.5 to 10 kHz [3] [6]
Resonant Frequency >25 kHz >25 kHz [6]
Broadband Resolution 0.0018 g rms 0.017658 m/s² rms [4]
Non-Linearity ≤1 % ≤1 % [2]
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) 5000 g pk 49k m/s² pk
Temperature Range (Operating) -65 to +185 °F -54 to +85 °C
Temperature Response See Graph See Graph [4]
Electrical
Settling Time (within 1% of bias) ≤2 sec ≤2 sec
Discharge Time Constant ≥0.3 sec ≥0.3 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 19 µg/√Hz 186.4 (µm/sec2)/√Hz [4]
Spectral Noise (100 Hz) 8 µg/√Hz 78.5 (µm/sec2)/√Hz [4]
Spectral Noise (1 kHz) 5 µg/√Hz 49.1 (µm/sec2)/√Hz [4]
Physical
Size - Lip Diameter 0.36 in 9.1 mm
Size - Height 0.26 in 6.6 mm
Weight 0.08 oz 2.2 gm
Mounting Adhesive Adhesive
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Bottom Bottom
Cable Termination Blunt cut Blunt cut
Electrical Connections (Red) Signal / Power Signal / Power
Electrical Connections (Black) Neg (-) Ground Neg (-) Ground
Cable Length 1 ft 0.3 m
Cable Type PVC PVC

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
ICS-2 Calibration of industrial accel., single-point, 100 Hz reference sensitivity 1

Optional Versions

(HT) High temperature, extends normal operation temperatures

English SI
Temperature Range -65 to 250 °F -54 to 121 °C
Cable Type 031 PTFE
Electrical Connections Signal / Power
Electrical Connections Neg (-) Ground
