500f, 2-socket, 7/16-27 uns-2b plug, improved retention force **requires special tooling for assembly–no sales except pcb locations that have the tooling and procedures**

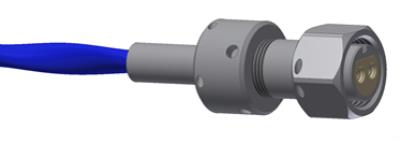

Cable Connector

Model QY

  • IP

500F, 2-socket, 7/16-27 UNS-2B plug, improved retention force **Requires special tooling for assembly–No sales except PCB locations that have the tooling and procedures**

  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Temperature Range: -320 to 500 °F (-196 to 260 °C)

Specification Notes

[1] Maximum.

English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Coupling Method Threaded Threaded
Environmental
Temperature Range -320 to 500 °F -196 to 260 °C
Physical
Mounting Torque 32 in-lb 362 N-cm [1]
Size - Hex 0.5 in 13 mm
Size - Length 1.6 in 4.1 cm
Weight 0.6 oz 17 gm

* All specifications are at room temperature unless otherwise specified.
