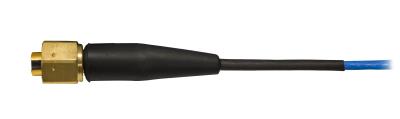

4-socket 1/4-28, hex coupling nut plug **requires special tooling for assembly – no sales except pcb locations that have the tooling and procedures.**

Cable Connector

Model QN

  • IP

4-socket 1/4-28, hex coupling nut plug **Requires special tooling for assembly – No sales except PCB locations that have the tooling and procedures.**

  • Connector Style: Multi-conductor
  • Connection Type: 4-socket
  • Connection Type: Plug with Female Contact
  • Coupling Thread: 1/4-28 female
  • Temperature Range: -76 to 325 °F (-60 to 162.7 °C)

Specification Notes


English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 4-socket 4-socket
Connection Type Plug with Female Contact Plug with Female Contact
Coupling Method Threaded Threaded
Coupling Thread 1/4-28 female 1/4-28 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -76 to 325 °F -60 to 162.7 °C
Physical
Housing Material Brass Brass
Mounting Torque 25 to 30 in-oz 17.6 to 21.2 N-cm
Size - OD .34 in 8.6 mm
Size - Hex .31 in 7.9 mm
Size - Length 1.0 in 25.4 mm
Weight .11 oz 3.1 gm

* All specifications are at room temperature unless otherwise specified.
