5-socket m12 connector with single-axis accelerometer pinout.  mates with models 601a92, 602d91, 603c91, 655a9x/656a9x series. molded connector not for individual sale.

Cable Connector

Model PZ

  • IP

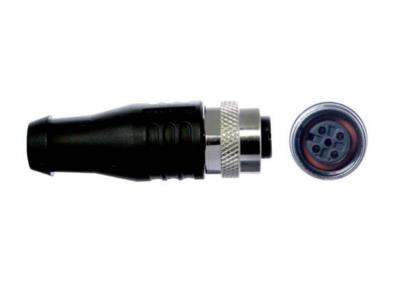

5-socket M12 connector with single-axis accelerometer pinout. Mates with Models 601A92, 602D91, 603C91, 655A9x/656A9x series. Molded connector not for individual sale.

  • Connector Style: Circular
  • Connector Style: Multi-conductor
  • Connection Type: 5-socket
  • Connection Type: Plug with Female Contact
  • Coupling Thread: No English equivalent (M12 x 1 Female)
  • Temperature Range: -40 to +221 °F (-40 to +105 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Connector Style Circular Circular
Connector Style Multi-conductor Multi-conductor
Connection Type 5-socket 5-socket
Connection Type Plug with Female Contact Plug with Female Contact
Coupling Method Threaded Threaded
Coupling Thread No English equivalent M12 x 1 Female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -40 to +221 °F -40 to +105 °C
Enclosure Rating IP68 IP68
Physical
Electrical Connections (Contact 1) Red Red
Electrical Connections (Contact 3) No Connection No Connection
Electrical Connections (Contact 2) Blue Blue
Electrical Connections (Contact 4) No Connection No Connection
Electrical Connections (Contact 5) No Connection No Connection
Electrical Connections (No Connection) Drain Drain
Electrical Connections (No Connection) Shield Shield
ROHS Compliant Yes Yes
Housing Material TPV (Santoprene), Black TPV (Santoprene), Black
Size - OD .58 in 14.7 mm
Size - Length 1.76 in 44.7 mm
Weight 0.42 oz 11.8 g [1]

* All specifications are at room temperature unless otherwise specified.
