msha approved model 622a01, 100 mv/g, top exit, 2-pin conn.

Precision Industrial ICP® Accelerometer

Model MS622A01

Add to Quote
  • CE
  • IP

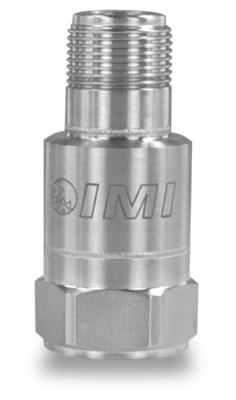

MSHA approved Model 622A01, 100 mV/g, top exit, 2-pin conn.

    Specification Notes

    [1] Conversion Factor 1g = 9.81 m/s².
    [2] Zero-based, least-squares, straight line method.
    [3] The high frequency tolerance is accurate within ±10% of the specified frequency.
    [4] Typical.
    [5] 1/4-28 has no equivalent in S.I. units.
    [6] See PCB Declaration of Conformance PS023 for details (however, see PCB Declaration of Conformity PS061 for optional ATEX models (i.e., those optional models including "EX" within the model number)).

    English: SI:
    Performance
    Sensitivity (±5 %) 100 mV/g 10.2 mV/(m/s²) [1]
    Measurement Range ±50 g ±490 m/s²
    Frequency Range (±5 %) 35 to 240000 cpm 0.58 to 4000 Hz [3]
    Frequency Range (±10 %) 25 to 300000 cpm 0.42 to 5000 Hz
    Frequency Range (±3 dB) 12 to 600000 cpm 0.2 to 10000 Hz
    Resonant Frequency 1200 kcpm 20 kHz [4]
    Broadband Resolution (1) 50 µg 490 µm/sec2 [4]
    Non-Linearity ±1 % ±1 % [2]
    Transverse Sensitivity ≤5 % ≤5 %
    Environmental
    Overload Limit (Shock) 5000 g pk 49050 m/s² pk
    Temperature Range -65 to +250 °F -54 to +121 °C
    Temperature Response See Graph %/°F See Graph %/°F [4]
    Enclosure Rating IP68 IP68
    Electrical
    Settling Time (within 1% of bias) ≤5.0 sec ≤5.0 sec
    Discharge Time Constant ≥0.8 sec ≥0.8 sec
    Excitation Voltage 18 to 28 VDC 18 to 28 VDC
    Constant Current Excitation 2 to 20 mA 2 to 20 mA
    Output Impedance <100 Ohm <100 Ohm
    Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
    Spectral Noise (10 Hz) 4.0 µg/√Hz 39.2 (µm/sec2)/√Hz [4]
    Spectral Noise (100 Hz) 0.8 µg/√Hz 7.85 (µm/sec2)/√Hz [4]
    Spectral Noise (1 kHz) 0.4 µg/√Hz 3.92 (µm/sec2)/√Hz [4]
    Electrical Protection RFI/ESD RFI/ESD
    Electrical Isolation >100000000 Ohm >100000000 Ohm
    Physical
    Size - Hex 7/8 in 22 mm
    Size - Height 2.06 in 52.3 mm
    Weight 3.3 oz 94 gm
    Mounting Thread 1/4-28 Female 1/4-28 Female [5]
    Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
    Sensing Element Ceramic Ceramic
    Sensing Geometry Shear Shear
    Housing Material Stainless Steel Stainless Steel
    Sealing Welded Hermetic Welded Hermetic
    Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
    Electrical Connection Position Top Top

    * All specifications are at room temperature unless otherwise specified.

    TempChart

    Accessories
    Supplied
    081A40 Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip 1
    ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1

    Optional Versions

    (CS) Canadian Standards Association Approved Intrinsically Safe

    English SI
    Hazardous Area Approval Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I
    Hazardous Area Approval Ex ia IIC T4, AExia IIC, T4
    Hazardous Area Approval Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4

    (EX) Hazardous Area Approval- contact factory for specific approvals

    English SI
    Hazardous Area Approval EEx ia IIC T4, -54°C<=Ta<=121°C, II 1 G

    (LB) Low Bias Voltage

    English SI
    Output Bias Voltage 6 to 8 VDC
    Measurement Range ±35 g ±343 m/s²
    Excitation Voltage 12 to 28 VDC
    (M) Metric Mount
    Accessories:
    Supplied M081A61 Mounting Stud 1

    (TO) Temperature Output

    English SI
    Electrical Connections Ground
    Electrical Connections Temperature Output
    Temperature Output Range +36 to +250 °F +2 to +121 °C
    Temperature Scale Factor 5.56 mV/°F + 32 +10 mV/°C
    Electrical Connector 3-Pin
    Electrical Connections Acceleration Output
