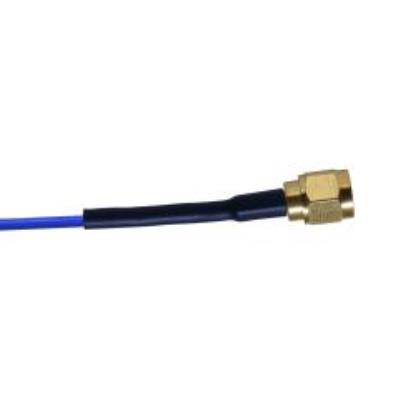

sma plug

Cable Connector

Model JE

Add to Quote
  • IP

SMA plug

  • Connector Style: Coaxial
  • Connector Style: SMA
  • Connection Type: Plug (male pin)
  • Coupling Thread: 1/4-36 female
  • Temperature Range: -40 to 329 °F (-40 to 165 °C)

Specification Notes

English: SI:
Performance
Connector Style Coaxial Coaxial
Connector Style SMA SMA
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 1/4-36 female 1/4-36 female
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -40 to 329 °F -40 to 165 °C
Physical
ROHS Compliant Yes Yes
Mounting Torque 7 to 10 in-lb 79 to 113 N-cm
Size - Hex .312 in 7.92 mm
Size - Length 0.706 in 17.93 mm
Weight 0.1 oz 3 gm

* All specifications are at room temperature unless otherwise specified.
