high temperature, ring-style, industrial, quartz shear icp® accel, 100 mv/g, 0.8 to 10k hz, side exit, 2-pin conn., frequency sweep iso 17025 accredited calibration

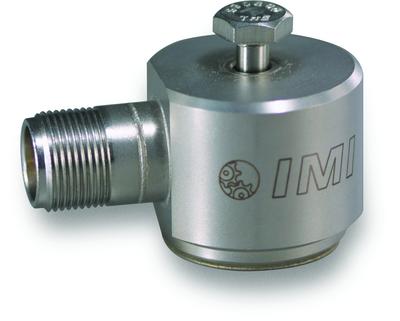

High Temperature Industrial ICP® Accelerometer

Model HT624B01

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

High temperature, ring-style, industrial, quartz shear ICP® accel, 100 mV/g, 0.8 to 10k Hz, side exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration

  • Sensitivity: (±5%)100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)48 to 300000 cpm (0.8 to 5000 Hz)
  • Sensing Element: Quartz
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 4.2 oz (120 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical.
[6] Bias voltage increases with higher constant current.
[7] Maximum of 4 mA is recommended at temperatures above 250 °F (121 °C).
[8] 1/4-28 has no equivalent in S.I. units.
[9] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±5 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±5 %) 144 to 120000 cpm 2.4 to 2000 Hz [2] [4]
Frequency Range (±10 %) 102 to 180000 cpm 1.7 to 3000 Hz
Frequency Range (±3 dB) 48 to 300000 cpm 0.8 to 5000 Hz
Resonant Frequency 1080 kcpm 18 kHz [5]
Broadband Resolution (1) 1 mg rms 9.81 mm/s² [5]
Non-Linearity ±1 % ±1 % [3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 1000 g pk 981 m/s² pk
Temperature Range (Operating) -65 to +325 °F -54 to +162 °C
Temperature Range (Survivable Limit) +350 °F +176 °C
Temperature Response See Graph %/°F See Graph %/°F [5]
Electrical
Settling Time (within 1% of bias) ≤3 sec ≤3 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 10 mA 2 to 10 mA [7]
Output Impedance <500 Ohm <500 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC [6]
Spectral Noise (10 Hz) 50 µg/√Hz 491 (µm/sec2)/√Hz [5]
Spectral Noise (100 Hz) 20 µg/√Hz 196 (µm/sec2)/√Hz [5]
Spectral Noise (1 kHz) 6 µg/√Hz 59 (µm/sec2)/√Hz [5]
Electrical Protection RFI/ESD RFI/ESD
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Diameter 1.37 in 34.8 mm
Size - Height .955 in 24.3 mm
Weight 4.2 oz 120 gm
Mounting Thread 1/4-28 UNF No Metric Equivalent [8]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Quartz Quartz
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 3-Pin MIL-C-5015 3-Pin MIL-C-5015
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
081A67 Captive mounting bolt, 1/4-28 x 1.12" long, hex head (for series 624 & 625A sensors) 1
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1

Optional Versions

(M) Metric Mount
Accessories:
Supplied M081A67 Captive Mounting Bolt 1
