smb right angle plug

Cable Connector

Model HR

Add to Quote
  • IP

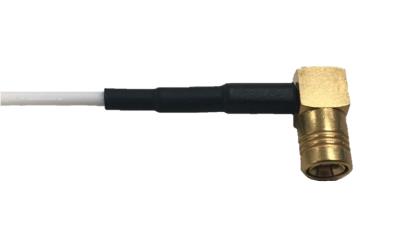

SMB right angle plug

  • Connector Style: SMB
  • Connector Style: Coaxial
  • Connection Type: Plug with Female Contact
  • Temperature Range: -67 to 275 °F (-55 to 135 °C)

Specification Notes

English: SI:
Performance
Connector Style SMB SMB
Connector Style Coaxial Coaxial
Connection Type Plug with Female Contact Plug with Female Contact
Coupling Method Push On Push On
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -67 to 275 °F -55 to 135 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance 1 GOhm 1 GOhm
Physical
ROHS Compliant Yes Yes
Housing Material Brass Brass
Size - Length .60 in 15.3 mm
Size - Height .54 in 13.7 mm
Size - Width .25 6.4
Weight 0.14 oz 3.8 gm

* All specifications are at room temperature unless otherwise specified.
