miniature 4-pin 8-36 jack (mates to eh connector) **requires special tooling for assembly–no sales except pcb locations that have the tooling and procedures.**

Cable Connector

Model HJ

Add to Quote
  • IP

miniature 4-pin 8-36 jack (mates to EH connector) **Requires special tooling for assembly–No sales except PCB locations that have the tooling and procedures.**

  • Connector Style: Multi-conductor
  • Connection Type: 4-pin
  • Connection Type: Jack with Male Contact
  • Coupling Thread: 8-36 female
  • Temperature Range: -76 to 325 °F (-60 to 162.7 °C)

Specification Notes

English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 4-pin 4-pin
Connection Type Jack with Male Contact Jack with Male Contact
Coupling Method Threaded Threaded
Coupling Thread 8-36 female 8-36 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -76 to 325 °F -60 to 162.7 °C

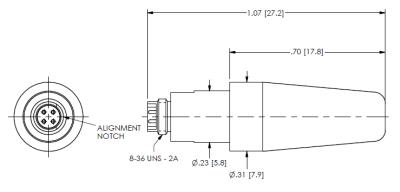

Physical
Housing Material Titanium Titanium
Size - OD 0.31 in 7.9 mm
Size - Length 1.2 in 30 mm
Weight 0.04 oz 1.2 gm

* All specifications are at room temperature unless otherwise specified.
