same as model number cs640b92 except substitute the normal conduit elbow (100-7094-90) with an appleton enclosure (app grlb100-a) which has a grounding lug.

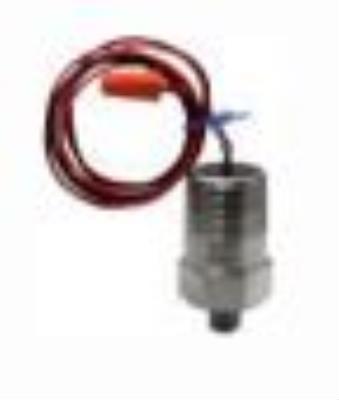

Loop Powered, Current Output, Industrial Vibration Sensor

Model CS640B94

Add to Quote
  • CE
  • IP

Same as model number CS640B92 except substitute the normal conduit elbow (100-7094-90) with an Appleton enclosure (APP GRLB100-A) which has a grounding lug.

  • Measurement Range: 0.0 to 2 in/sec pk (0.0 to 50.8 mm/s pk)
  • Output: 4-20 mA
  • Frequency Range: (±3dB)180 to 60000 cpm (3 to 1000 Hz)
  • Sensing Element: Ceramic
  • Weight: 1.2 lb (544 gm)

Specification Notes

[1] 1Hz = 60 cpm (cycles per minute).
[2] Current will fluctuate at frequencies below 5 Hz.
[3] Conversion Factor 1 in/sec = 0.0254 m/sec.
[4] Typical.
[5] See PCB Declaration of Conformance PS039 for details.

English: SI:
Performance
Measurement Range 0.0 to 2 in/sec pk 0.0 to 50.8 mm/s pk [3]
Output 4-20 mA 4-20 mA
Frequency Range (±3 dB) 180 to 60000 cpm 3 to 1000 Hz [1] [2]
Broadband Resolution 0.01 in/sec pk 0.26 mm/s pk [4]
Non-Linearity ±1 % ±1 %
Environmental
Temperature Range -40 to 176 °F -40 to 80 °C
Electrical
Excitation Voltage 12 to 30 VDC 12 to 30 VDC
Load Resistance 50 (Vs-12) ohms 50 (Vs-12) ohms
Settling Time (within 2% of value) <15 sec <15 sec
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 3.85 in 98 mm
Size - Height 5.52 in 140 mm
Weight 1.2 lb 544 gm
Mounting Thread 1/4 NPT No Metric Equivalent
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Top Top
Wire Length 36 in 91.44 cm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
ICS-4 NIST-traceable single axis amplitude response cal from 0 to +10% freq. (for 4 to 20 mA sensors) 1
