class 1 acoustic calibrator with user selectable output of 94 or 114 db at 1 khz. 1/2 in. opening. (no adapter). includes calibration certificate

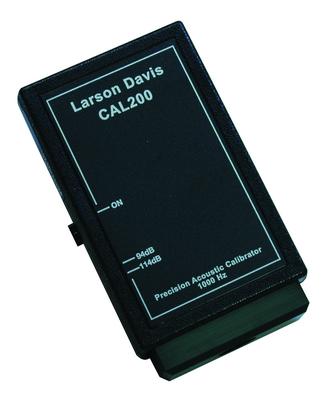

Acoustic Calibrator

Model CAL200

Add to Quote
  • CE
  • IP

Class 1 acoustic calibrator with user selectable output of 94 or 114 dB at 1 kHz. 1/2 in. opening. (no adapter). Includes calibration certificate

For more information see https://www.larsondavis.com/Products/Calibrators
  • Operating Frequency: (±1%)1000 Hz
  • Output: (±0.2dB)114 dB re 20 µPa
  • Distortion: <2 %
  • Configuration: Hand-Held

Specification Notes

[1] Typical.
[2] Alkaline type recommended for longest service life.

English: SI:
Performance
Operating Frequency (±1 %) 1000 Hz 1000 Hz
Output (±0.2 dB) (Sound Pressure Level) 94 dB re 20 µPa 94 dB re 20 µPa
Output (±0.2 dB) (Sound Pressure Level) 114 dB re 20 µPa 114 dB re 20 µPa
Distortion <2 % <2 %
Environmental
Temperature Range (Operating) 14 to +122 °F -10 to +50 °C
Barometric Pressure Coefficient ≤0.3 dB ≤0.3 dB
Electrical
Settling Time ≤2 sec ≤2 sec
Internal Battery (Type) 9V 9V [2]
Internal Battery (Quantity) 1 1
Battery Life 42 hours 42 hours [1] [2]
Physical
Size - Height 1.0 in 25.4 mm
Size - Width 2.5 in 63.5 mm
Size - Length 4.17 in 105.9 mm
Weight 5.5 oz 155 gm

* All specifications are at room temperature unless otherwise specified.
