din rail mount strain gage signal conditioner, +/- 10 v & 4 to 20 ma outputs, calibrated in voltage, 10 vdc bridge excitation voltage, switch activated shunt, 12 to 28 vdc operation

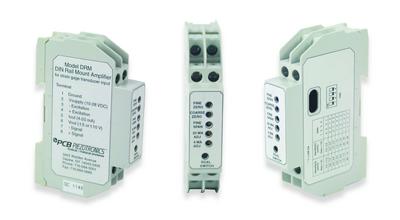

DIN Rail Strain Gage Conditioner

Model 8161-011A

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-1 is 14 Dys.
  • IP

DIN rail mount strain gage signal conditioner, +/- 10 V & 4 to 20 mA outputs, calibrated in voltage, 10 VDC bridge excitation voltage, switch activated shunt, 12 to 28 VDC operation

    Specification Notes

    [1] Jumper selectable.
    [2] At full sensor load.

    English: SI:
    Performance
    Frequency Range 1000 Hz 1000 Hz
    Non-Linearity ±0.01 % FS ±0.01 % FS
    Zero Adjust Range(Output 1) (course) ±60 % ±60 %
    Zero Adjust Range (fine) ±10 % ±10 %
    Span Adjust Range(Output 1) (course) ±0.05 to 5 mV/V ±0.05 to 5 mV/V
    Span Adjust Range (fine) ±20 % ±20 %
    20 mA Adjust Range(Output 2.) ±20 % ±20 %
    4 mA Adjust Range(Output 2) ±10 % ±10 %
    Environmental
    Temperature Range +32 to +158 °F 0 to +70 °C
    Electrical
    Excitation (Max Current) 30 mA 30 mA
    Excitation Voltage (±.05 %) (Sensor) 10 VDC 10 VDC [1]
    Output 1 (Voltage) ±10 VDC ±10 VDC [1]
    Output 2 (Current) 4 to 20 mA 4 to 20 mA
    Power Required (Current) 60 mA 60 mA [2]
    Power Required (Voltage) 12 to 28 Vdc 12 to 28 Vdc
    Physical
    Size - Height 3.35 in 89 mm
    Size - Width 0.69 in 18 mm
    Mounting 35 mm DIN Rail 35 mm DIN Rail
    Size - Length 2.27 in 58 mm

    * All specifications are at room temperature unless otherwise specified.
