portable vibration calibrator with 5-10k hz frequency range adjustable amplitude ranges (acceleration, velocity, displacement). calibrates all types of vibration transducers with input. lcd readout in english or metric units. memory & usb storage

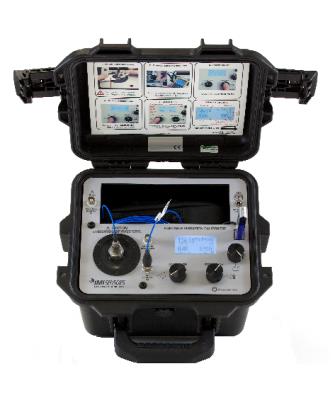

Portable Vibration Calibrator

Model 699B07

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Portable Vibration Calibrator with 5-10k Hz frequency range adjustable amplitude ranges (acceleration, velocity, displacement). Calibrates all types of vibration transducers with input. LCD readout in English or metric units. Memory & USB storage

  • Maximum Load: 28.2 oz (800 gm)

Specification Notes


[1] Operating range reduced at higher payloads. Reference manual for full details.
[2] Up to 10g pk
[3] Up to 5g pk
[4] EU can be [g], [m/s²], [mm/s], [in/s], [mils] or [um]
[5] 5 mA constant current excitation to ICP® (IEPE) sensor.
[6] As shipped from factory in new condition
[7] See PCB Declaration of Conformance PS146 for details.

English: SI:
Performance
Maximum Load 28.2 oz 800 gm [1]
Frequency Range (operating, 100 gram payload) 5 to 10000 Hz 300 to 600000 cpm
Accuracy (10 Hz to 10 khz) ±3 % ±3 %
Accuracy (5 Hz to 10 Hz) ±5 % ±5 %
Accuracy (Velocity (10 Hz to 1000 Hz)) ±3 % ±3 %
Accuracy (Displacement (30 Hz to 150 Hz)) ±3 % ±3 %
Amplitude Linearity (100 gram payload, 100 Hz) 1 % 1 % [2]
Distortion (100 gram payload, 30 Hz to 2 kHz) <5 % <5 % [3]
Maximum Amplitude (Acc 50 Hz,10 gram payload) 20 g pk 196 m/s^2 pk
Maximum Amplitude (Vel 50 Hz, 10 gram payload) 20 in/sec pk 500 mm/s pk
Maximum Amplitude (Displ 50 Hz, 10 gram payload) 150 mils pk-pk 3.8 mm pk-pk
Maximum Amplitude (Acc 50 Hz, 500 gram payload) 2.5 g pk 24.5 m/s² pk
Maximum Amplitude (Vel 50 Hz, 500 gram payload) 3.5 in/s pk 90 mm/s pk
Control Interface
Test Operation Manual (Closed Loop) or Semi-Automatic Manual (Closed Loop) or Semi-Automatic
Test Sensor In ICP, Voltage, Modulated Current, Chg, Diff Chg, Single-ended Chg (Ext Chg AMP Req'd ICP, Voltage, Modulated Current, Chg, Diff Chg, Single-ended Chg (Ext Chg AMP Req'd [5]
Bias Fault Indication (ICP® Sensors) Yes Yes
External Source In (Max) 1V AC RMS 1V AC RMS
Monitor Reference Out 10 mV/g (nominal), Quartz Reference Accelerometer, BNC Jack Output 10 mV/g (nominal), Quartz Reference Accelerometer, BNC Jack Output
Display Units (Acceleration) g pk & RMS m/s² pk & RMS
Display Units (Velocity) in/sec pk & RMS mm/sec pk & RMS
Display Units (Displacement) mils pk-pk um pk-pk
Display Units (Frequency) Hz CPM
Test Sensor Sensitivity mV/EU, mA/EU, µA/EU, pC/EU mV/EU, mA/EU, µA/EU, pC/EU [4]
Environmental
Temperature Range (Operating) 32 to 122 °F 0 to 50 °C
Electrical
Power Required (Internal Battery (sealed solid gel lead acid)) 12 VDC, 4 amp hours 12 VDC, 4 amp hours
Power Required (Input from Charger) 18 VDC, 1A 18 VDC, 1A
Power Required (AC Power (for recharging battery)) 110-240 V, 50-60 Hz 110-240 V, 50-60 Hz
Battery Life (100 gram payload, 100 Hz 1g pk) 18 hours 18 hours [6]
Battery Life (100 gram payload, 100 Hz 10g pk) 1 hour 1 hour [6]
Physical
Storage Semi-Automated test routine calibration settings Semi-Automated test routine calibration settings
Points Per Record 30 calibration data points 30 calibration data points
Sensor Information Model number, serial number, Mounting orientation (x, y, z), user notes Model number, serial number, Mounting orientation (x, y, z), user notes
Export File Format CSV (comma-separated values) CSV (comma-separated values)
USB Port Loading Semi-Automating Test Routines Exporting Calibration Records in CSV Format Loading Semi-Automating Test Routines Exporting Calibration Records in CSV Format
Size - Width 12 in 30.5 cm
Size - Depth 10 in 28 cm
Size - Height 8.5 in 22 cm
Weight 18 lb 8.2 kg
Mounting Thread 1/4-28 Female No Metric Equivalent

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A08 Mounting stud, 10-32 to 1/4-28 x 0.30" long, BeCu 1
081B20 Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder 1
081M165 Mounting stud 1/4-28 to M8X1.0 BeCu 1
600A25 18 Volt, 1 amp power supply / charger for 699x06/07 Portable Vibration Calibrator, universal 100-240 V, 50/60 Hz. 1
600A34 1
600A54 M8x1.25 Mounting Pad 1
600A55 M8x1 Mounting Pad 1
600A56 Mounting Plate, 3 and 4-Hole High Temp Vibration Sensors 1
600A57 Mounting Plate, 3 and 4-Hole High Temp Vibration Sensors 1
ICS-41 1
M081A63 Mounting stud, 1/4-28 to M8x1.25 x 10.2 mm long, BeCu 1
USB DRIVE 1
