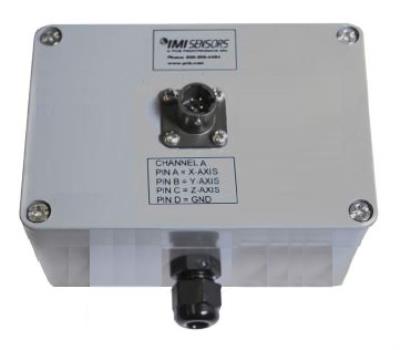

4-pin bayonet termination box for one triax accelerometer

TERMINATION BOX

Model 691M156

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

4-Pin Bayonet Termination Box for One Triax Accelerometer

  • Channels: 1
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes


English: SI:
Performance
Channels (Tri-Ax) 1 1
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output) 4-Pin Bayonet 4-Pin Bayonet
Cable Input PGME07 PGME07
Housing Material Fiberglass Fiberglass
Size - Height 4.33 in 110 mm
Size - Width 2.95 in 80 mm
Size - Depth 2.16 in 55 mm
Weight 1.1 lb .50 kg

* All specifications are at room temperature unless otherwise specified.
