switch box with switched & continuous outputs, 20 x 16 x 10nema 4x (ip66) fiberglass enclosure, 36 channels, terminal strip input, vib & temp jack and two-pin mil connector outputs, no connection ports

Vibration Switch Box

Model 691C45

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

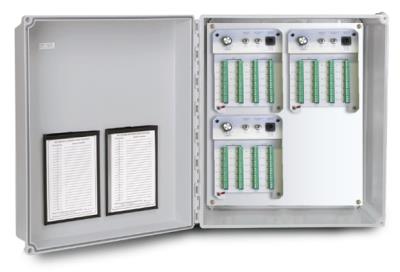

Switch box with switched & continuous outputs, 20" x 16" x 10"NEMA 4X (IP66) fiberglass enclosure, 36 channels, terminal strip input, vib & temp jack and two-pin MIL connector outputs, no connection ports

  • Channels: 36
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes


[1] See PCB Declaration of Conformance PS174 for details.

English: SI:
Performance
Channels 36 36
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Electrical Connector (Output, Temperature) BNC Jack BNC Jack
Electrical Connector (Output, Vibration) 2-Pin Mil 2-Pin Mil
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output, Vibration) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size - Height 20.6 in 523.2 mm
Size - Width 16.6 in 421.6 mm
Size - Depth 7.9 in 200.6 mm
Weight 25.9 lb 11.7 kg

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A192 4-position terminal block for use with model 691B40 3
