triax switch box with switched outputs, 10 x 8 x 6 nema 4x (ip66) fiberglass enc, 12 triax channels, terminal strip input, four-pin mil connector output, no conn ports

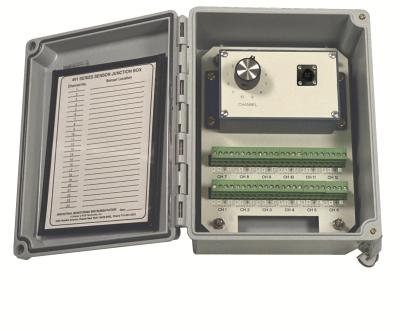

36 Channel (12 Tri-Ax) Switch Box

Model 691A80

Add to Quote
  • IP

Triax switch box with switched outputs, 10" x 8" x 6" NEMA 4X (IP66) fiberglass enc, 12 triax channels, terminal strip input, four-pin MIL connector output, no conn ports

  • Channels: 36
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes

English: SI:
Performance
Channels (Single) 36 36
Channels (Tri-Ax) 12 12
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Output, Triaxial) 4-Pin Bayonet 4-Pin Bayonet
Electrical Connector (Input) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size - Height 8.50 in 215.9 mm
Size - Width 6.91 in 175.6 mm
Size - Depth 3.48 in 88.4 mm
Weight 5 lb 2.3 kg

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
080A192 4-position terminal block for use with model 691B40 1
