switch box with switched outputs, 16 x 14 x 8 nema 4x (ip66) fiberglass enc, 24 channels, terminal strip input, vib & temp bnc jack output, no conn ports

Switch Box

Model 691B44

Add to Quote
  • IP

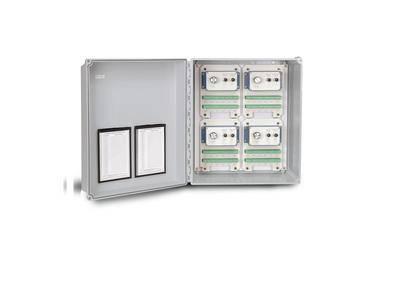

Switch box with switched outputs, 16" x 14" x 8" NEMA 4X (IP66) fiberglass enc, 24 channels, terminal strip input, vib & temp BNC jack output, no conn ports

  • Channels: 24
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes

English: SI:
Performance
Channels 24 24
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Electrical Connector (Output, Temperature) BNC Jack BNC Jack
Electrical Connector (Input) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size - Height 16 in 406 mm
Size - Width 14 in 356 mm
Size - Depth 8 in 203 mm
Weight 16 lb 7.3 kg

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
080A192 4-position terminal block for use with model 691B40 2

Optional Versions

(PSS) Painted Steel

English SI
Size - Height 16 in 406
Size - Width 14 in 356
Size - Depth 6 in 203
Weight 27 lb 12.3

(SSS) Stainless Steel Enclosure

English SI
Size - Height 16 in 406
Size - Width 14 in 356
Size - Depth 6 in 203
Weight 25 lb 11.4
