switch box module with switched outputs, 12 channels, terminal strip input, vib & temp jack and two-pin mil connector outputs, for use with models 691b43/44/45/46

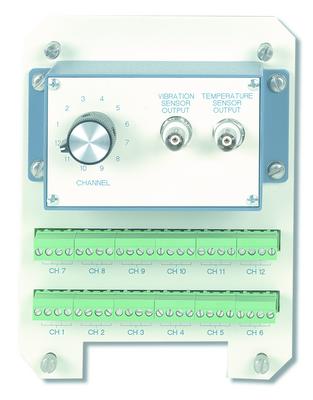

Switch Box Module

Model 691B40

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Switch box module with switched outputs, 12 channels, terminal strip input, vib & temp jack and two-pin MIL connector outputs, for use with Models 691B43/44/45/46

  • Channels: 12

Specification Notes


English: SI:
Performance
Channels 12 12
Physical
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Electrical Connector (Output, Temperature) BNC Jack BNC Jack
Electrical Connector (Input) Terminal Block Terminal Block
Size - Height 7.5 in 190.5 mm
Size - Width 5.5 in 139.7 mm
Size - Depth 3.3 in 83.8 mm
Weight 1.7 lb 0.8 kg

* All specifications are at room temperature unless otherwise specified.
