bnc termination box, 2.95 x 5.27 x 2.16 nema 4x (ip66) fiberglass enc, 1 channel, terminal strip input, bnc jack output, 1 pgme07 cord grip

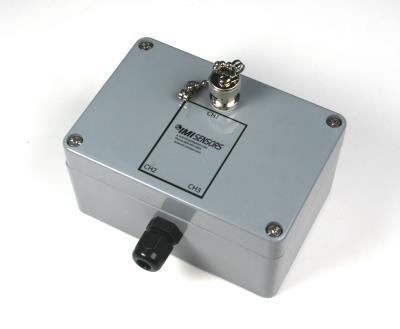

BNC Termination Box

Model 691A51/01

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-5 is 14 Dys.
Lead Time for 6-10 is 3 Wks.
  • CE
  • IP

BNC termination box, 2.95" x 5.27" x 2.16" NEMA 4X (IP66) fiberglass enc, 1 channel, terminal strip input, BNC jack output, 1 PGME07 cord grip

  • Channels: 1
  • Housing Material: Fiberglass

Specification Notes

[1] See PCB Declaration of Conformance PS174 for details.

English: SI:
Performance
Channels 1 1
Environmental
Temperature Range -15 to 185 °F -26 to 85
Physical
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output) BNC Jack BNC Jack
Cable Input PGME07 PGME07
Housing Material Fiberglass Fiberglass
Size - Height 4.33 in 110 mm
Size - Width 2.95 in 80 mm
Size - Depth 2.16 in 55 mm
Weight .90 lb .41 kg
ROHS Compliant Yes Yes

* All specifications are at room temperature unless otherwise specified.
