Electronic Vibration Switch

Model 685B0001A13

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

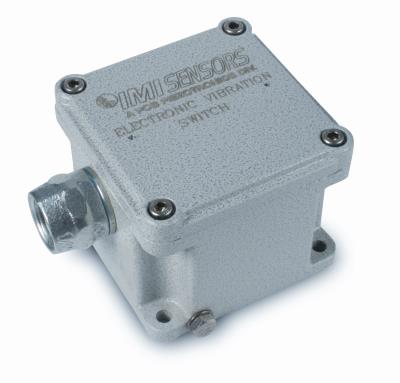

Electronic vibration switch, internal ICP® accel., 0-1.5 ips, AC powered, 10A form C relays, std enclosure, single port with 1/2" NPT conduit hub

685B series electronic vibration switch with internal sensor, 0-1.5 ips scale factor, 85-245 Vac power, 10A Form C relays, single 1/2" NPT conduit hub, CSA approved.

This model is a pre-configured stock version of Model 685BXX. For the full 685BXX configuration options, reference the configuration table on pages 18-19 of the Product Manual, which is available under the Manual tab.

Measurement Range: 0 to 1.5 in/sec pk (0 to 38.1 mm/s pk)
Cable Input: Single 1/2 in. NPT Conduit Hub
Relay: 10 A, 245 VAC/30 VDC, Form C
Power Required: 85-245 VAC 50/60 Hz
Electrical Connector: Screw Terminals

Specification Notes

[1] To obtain 60000 cpm (1000 Hz) frequency response, grease must be applied to all mechanical couplings. Otherwise, frequency response is limited to approximately 30000 cpm (500 Hz)
[2] Factory Set
[3] Reset can also be engaged via external connection to common
[4] Reference PCB Drawing 37476 for installation requirements
[5] Current will fluctuate at frequencies below 5 Hz.
[6] Active only during calibration mode
[7] See PCB Declaration of Conformance PS051 for details.

	English:	SI:
Performance
Measurement Range	0 to 1.5 in/sec pk	0 to 38.1 mm/s pk
Frequency Range (±3 dB)	120 to 60000 cpm	2 to 1000 Hz	[1]
Power On Delay	20 sec	20 sec	[2]
Relay (Alert)	10 A, 245 VAC/30 VDC, Form C	10 A, 245 VAC/30 VDC, Form C
Relay (Alarm)	10 A, 245 VAC/30 VDC, Form C	10 A, 245 VAC/30 VDC, Form C
Relay(Contacts)	Latching / Non-Latching	Latching / Non-Latching
Relay(Contacts)	Normally Open / Closed	Normally Open / Closed
Alarm Setpoint	10 to 100% of Vibration Range	10 to 100% of Vibration Range
Alert Setpoint	10 to 100% of Alarm Setpoint	10 to 100% of Alarm Setpoint
Delay (Alert)	0 to 45 sec	0 to 45 sec
Delay (Alarm)	0 to 45 sec	0 to 45 sec
Acceleration Output (±10 %)	100 mV/g	10.2 mV/(m/s²)
Control Interface
Power LED	Green	Green
Alarm LED	Red	Red
Alert LED	Yellow	Yellow
Time Delay Adjustment	Single Turn Potentiometer	Single Turn Potentiometer
Reset Function	Momentary Pushbutton Switch	Momentary Pushbutton Switch	[3]
Self Test Function	Momentary Pushbutton Switch	Momentary Pushbutton Switch
Environmental
Temperature Range (Operating)	-22 to 158 °F	-30 to 70 °C
Temperature Range (Storage)	-40 to 257 °F	-40 to 125 °C
Hazardous Area Approval	Class I Div 2 Groups A, B, C, D	Class I Div 2 Groups A, B, C, D	[4]
Enclosure Rating	Nema 4X	IP66
Electrical
Power Required	85-245 VAC 50/60 Hz	85-245 VAC 50/60 Hz
Current Consumption	<150 mA	<150 mA
Output Current	4 to 20 mA	4 to 20 mA	[5]
External Calibration Input	4 to 20 mA	4 to 20 mA	[6]
Physical
Size - Width	3.5 in	90 mm
Size - Height	2.8 in	70 mm
Size - Depth	3.5 in	90 mm
Weight	1.85 lb	839 gm
Mounting Torque (Cover Screw)	4.1 ft-lb	5.7 Nm
Mounting Torque (Base)	2 to 5 ft-lb	3 to 7 Nm
Sensing Element (Internal)	100 mV/g ICP" Accelerometer	100 mV/g ICP" Accelerometer
Housing Material	Aluminum Alloy	Aluminum Alloy
Electrical Connector	Screw Terminals	Screw Terminals
Enclosure	Internal and Remote Reset	Internal and Remote Reset
Screw Terminal Wire Size	24-14 AWG	0.2 - 2.5 mm²
Cable Input	Single 1/2 in. NPT Conduit Hub	Single 1/2 in. NPT Conduit Hub
Mounting Hole Size	0.21 in	5.4 mm
