din rail mount vibration transmitter (for use w/icp sensor), 4-20 ma output for fixed 0-1 ips pk vibration, raw vibration output, fixed 3.5 hz to 10 khz frequency range

4-20 MA DIN RAIL SIGNAL CONDITIONER/TRANSMITTER

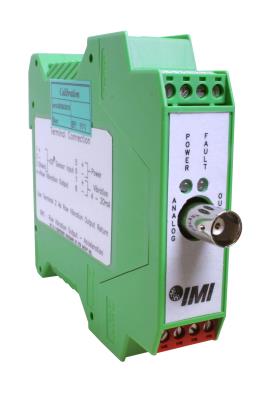

Model 682A14

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
12 Call for Lead Time
  • CE
  • IP

DIN rail mount vibration transmitter (for use w/ICP sensor), 4-20 mA output for fixed 0-1 ips pk vibration, raw vibration output, fixed 3.5 Hz to 10 kHz frequency range

  • Output Signal: 4 to 20 mA
  • DC Power: 23 to 25 VDC

Specification Notes

[1] Achieved with 100 mV/g ICP® accelerometer input.
[2] Attenuation is -40 dB/decade.
[3] Output current voltage will fluctuate at frequencies below 5 Hz.
[4] Output measurement range is based upon input from 100 mV/g ICP® accelerometer and will be scaled inversely proportional to any percentage deviation of this input.
[5] The low frequency tolerance is accurate within ± 0.5 Hz of the specified frequency.
[6] The high frequency tolerance is accurate within ±1.0 kHz of specified frequency.
[7] See PCB Declaration of Conformance PS124 for details.

English: SI:
Performance
Channels 1 1
Input Signal (Vibration) ±100 mV/g ±10.2 mV/(m/s²) [4]
Output Signal (DC Vibration) 4 to 20 mA 4 to 20 mA [3]
Output Signal (AC Vibration) 100 mV/g 10.2 mV/(m/s²) [1]
Frequency Range (-3 dB) (Velocity) 210 to 600000 cpm 3.5 to 10k Hz [2] [5] [6]
Output Range (DC Velocity) 0 to 1.00 in/sec pk 0 to 25.4 mm/s pk [4]
Environmental
Temperature Range (Operating) -13 to 158 °F -25 to 70 °C
Temperature Range (Storage) -40 to 257 °F -40 to 125 °C
Humidity Range (Non-Condensing) 0 to 95 % 0 to 95 %
Electrical
Power Required DC Power DC Power
DC Power 23 to 25 VDC 23 to 25 VDC
DC Power (maximum) 100 mA 100 mA
Settling Time <2 min <2 min
Excitation Voltage (delivered to sensor) 19 to 21 VDC 19 to 21 VDC
Constant Current Excitation (delivered to sensor) 3 to 5 mA 3 to 5 mA
Output Span (±5.0 %) (DC Vibration Current Output) 16 mA 16 mA
Physical
Electrical Connector (input/output) Removable Screw Terminals Removable Screw Terminals
Electrical Connector (raw vibration output) BNC Jack BNC Jack
Housing Material Polyamide Polyamide
Size - Height 3.9 in 99 mm
Size - Width 0.9 in 22.5 mm
Size - Depth 4.5 in 114.5 mm
Weight (Maximum) 6.4 oz 127
Screw Terminal Wire Size 24-14 AWG 24-14 AWG
Din Rail Mount 1.38 in 35 mm
Status Indicator (Power "on") Green LED Green LED
Status Indicator (Input Fault) Red LED Red LED

* All specifications are at room temperature unless otherwise specified.
