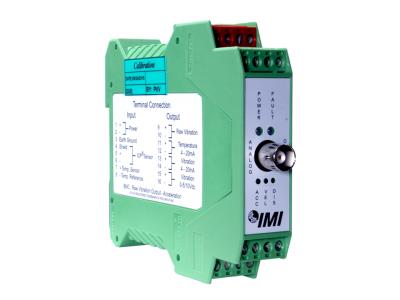

ICP® VIBRATION TRANSMITTER

Model 682C03

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Platinum Stock Products: DIN rail mount vibration transmitter (for use w/ICP sensor), 4-20 mA outputs for vibration and temperature, 0-5/0-10 VDC output for vibration, raw vibration output, 3 Hz to 10 kHz frequency range

  • Output Signal: 4 to 20 mA
  • Frequency Range: (-3dB)180 to 600000 cpm (3 to 10k Hz)
  • DC Power: 23 to 25 VDC

Specification Notes

[1] Achieved with 100 mV/g ICP® accelerometer input.
[2] Attenuation is -40 dB/decade.
[3] Maximum 1,000 Hz for displacement.
[4] Output current voltage will fluctuate at frequencies below 5 Hz.
[5] Requires use of accelerometer with "TO" temperature output option.
[6] Factory set, 0-5 VDC.
[7] Factory set, 1.0 in/sec peak
[8] Output measurement range is based upon input from 100 mV/g ICP® accelerometer and will be scaled inversely proportional to any percentage deviation of this input.
[9] Internal Dip switch selectable
[10] The low frequency tolerance is accurate within ± 0.5 Hz of the specified frequency.
[11] The high frequency tolerance is accurate within ± 0.5 kHz of the specified frequency.
[9] Internal Dip switch selectable
[12] Jumper selectable for 18 VDC regulated, 24 VDC power supply voltage or ICP® sensor excitation disabled
[13] 4 mA constant current diode is internal to 9330VT
[14] See PCB Declaration of Conformance PS152 for details.

English: SI:
Performance
Channels 1 1
Input Signal (Vibration) ±100 mV/g ±10.2 mV/(m/s²) [8]
Input Signal (Temperature) 0 to 1.2 VDC 0 to 1.2 VDC [5]
Output Signal (DC Vibration) 4 to 20 mA 4 to 20 mA [4]
Output Signal (DC Vibration) 0 to 5 VDC 0 to 5 VDC [6] [9]
Output Signal (DC Vibration) 0 to 10 VDC 0 to 10 VDC [6] [9]
Output Signal (Temperature) 4 to 20 mA 4 to 20 mA [5]
Output Signal (±0.01 %) (AC Vibration) 100 mV/g 10.2 mV/(m/s²) [1]
Frequency Range (-3 dB) (Acceleration) 180 to 600000 cpm 3 to 10k Hz [2] [10] [11]
Frequency Range (-3 dB) (Velocity) 210 to 600000 cpm 3.5 to 10k Hz [2] [10] [11]
Frequency Range (-3 dB) (Displacement) 210 to 60000 cpm 3.5 to 1000 Hz [2] [3] [10]
Output Range (DC Acceleration) 0 to 5.00 g pk or rms 0 to 49.03 m/s2 pk or rms [7] [8] [9]
Output Range (DC Acceleration) 0 to 10.00 g pk or rms 0 to 98.06 m/s2 pk or rms [7] [8] [9]
Output Range (DC Acceleration) 0 to 20.00 g pk or rms 0 to 196.12 m/s2 pk or rms [7] [8] [9]
Output Range (DC Velocity) 0 to 0.5 in/sec pk or rms 0 to 12.7 mm/s pk or rms [7] [8] [9]
Output Range (DC Velocity) 0 to 1.00 in/sec pk or rms 0 to 25.4 mm/s pk or rms [7] [8] [9]
Output Range (DC Velocity) 0 to 2.00 in/sec pk or rms 0 to 50.8 mm/s pk or rms [7] [8] [9]
Output Range (DC Displacement) 0 to 10.0 mil pk - pk 0 to 0.254 mm pk - pk [7] [8] [9]
Output Range (DC Displacement) 0 to 20.0 mil pk - pk 0 to 0.508 mm pk - pk [7] [8] [9]
Output Range (DC Displacement) 0 to 40.0 mil pk - pk 0 to 1.02 mm pk - pk [7] [8] [9]
Environmental
Temperature Range (Operating) -13 to 158 °F -25 to 70 °C
Temperature Range (Storage) -40 to 257 °F -40 to 125 °C
Humidity Range (Non-Condensing) 0 to 95 % 0 to 95 %
Electrical
Power Required DC Power DC Power
DC Power 23 to 25 VDC 23 to 25 VDC
DC Power (maximum) 100 mA 100 mA
Settling Time <2 min <2 min
Excitation Voltage (delivered to sensor) 17 to 19 VDC 17 to 19 VDC [12] [13]
Constant Current Excitation (delivered to sensor) 3 to 5 mA 3 to 5 mA [12] [13]
Output Span (±5.0 %) (DC Vibration Current Output) 16 mA 16 mA
Output Span (±5.0 %) (Temperature Output) 16 mA 16 mA
Output Span (±5.0 %) (DC Vibration Voltage Output) 5 or 10 VDC 5 or 10 VDC [9]
Physical
Electrical Connector (input/output) Removable Screw Terminals Removable Screw Terminals
Electrical Connector (raw vibration output) BNC Jack BNC Jack
Housing Material Polyamide Polyamide
Size - Height 3.9 in 99 mm
Size - Width 0.9 in 22.5 mm
Size - Depth 4.5 in 114.5 mm
Weight (Maximum) 6.4 oz 127
Screw Terminal Wire Size 24-14 AWG 24-14 AWG
Din Rail Mount 1.38 in 35 mm
Status Indicator (Power "on") Green LED Green LED
Status Indicator (Input Fault) Red LED Red LED
Status Indicator (Measurement Mode - Acceleration) Green LED Green LED
Status Indicator (Measurement Mode - Velocity) Green LED Green LED
Status Indicator (Measurement Mode - Displacement) Green LED Green LED
