vibration transmitter with an io-link communication protocol and digital processing along with an top exit m12 connector, temperature out measured at board level

IO-LINK® VIBRATION SENSOR

Model 674A91

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
28 Call for Lead Time
  • CE
  • IP

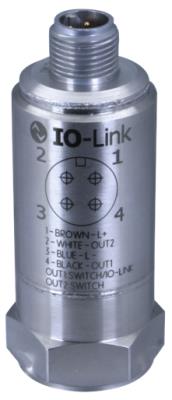

Vibration Transmitter with an IO-Link communication protocol and digital processing along with an top exit M12 connector, temperature out measured at board level

  • Housing Material: Stainless Steel
  • Size - Height: 2.6 in (66 mm)
  • Weight: 5.2 oz (148 g)

Specification Notes


[1] Typical.
[2] High Pass Analog Filter set to 1Hz
[3] High Pass Analog Filter set to 10Hz
[4] Digital High Pass Filter set to 1kHz
[5] Conversion Factor 1 g = 9.81 m/s^2
[6] Zero-based, least squares, straight line method
[7] Digital High Pass Filter Set to 5kHz
[1] Typical.
[8] 1/4-28 has no equivalent in S.I. units.
[9] See PCB Declaration of Conformance PS_________ for details.

English: SI:
Performance
Frequency Range (+/-3 dB) (Acceleration) 1 to 10,000 Hz 1 to 10,000 Hz [1] [2]
Frequency Range (+/-3 dB) (Acceleration) 10 to 10,000 Hz 10 to 10,000 Hz [1] [3]
Frequency Range (+/-3 dB) (Acceleration) 1,000 to 10,000 Hz 1,000 to 10,000 Hz [1] [4]
Frequency Range (+/-3 dB) (Acceleration) 5,000 to 10,000 Hz 5,000 to 10,000 Hz [1] [7]
Frequency Range (+/-3 dB) (Velocity) 2 to 10,000 Hz 2 to 10,000 Hz [1] [2]
Frequency Range (+/-3 dB) (Velocity) 10 to 10,000 Hz 10 to 10,000 Hz [1] [3]
Acceleration Range 50 g pk 490.5 m/s² pk [5]
Velocity Range 3 in/sec pk 76.2 mm/s pk
Transverse Sensitivity 7 % 7 %
Linearity ≤1 % ≤1 % [6]
Set/Reset Delay 0 to 50 sec 0 to 50 sec
Start Up Delay 0 to 50 sec 0 to 50 sec
Transmission Type COM3: 230.4 kbaud COM3: 230.4 kbaud
Io-Link Revision 1.1 1.1
SIO Mode Yes Yes
Required Master Port Class A, B A, B
Minimum Cycle Time 12 mS 12 mS
Output (Out1/Out2) Normally Open/Normally Closed Normally Open/Normally Closed
Environmental
Overload Limit (shock ) 5000 g pk 49,050 m/s² pk
Temperature Range -40 to +185 °F -40 to +85 °C
Enclosure Rating IP68 IP68
Electrical
Current Consumption (mA) 50 mA 50 mA [1]
Interface IO-Link IO-Link
Electrical Isolation >100000000 Ohm >100000000 Ohm
External DC Power (24 VDC) 24 VDC 24 VDC [1]
Physical
Size - Hex 1.0 25.4 mm
Size - Height 2.6 in 66 mm
Weight 5.2 oz 148 g
Mounting Thread 1/4-28 Female No Metric Equivalent [8]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Mounting Torque 3 to 5 ft-lb 4 to 7 Nm
Sealing Welded Hermetic Welded Hermetic
Electrical Connector M12, 4-Pin M12, 4-Pin
Electrical Connection Position Top Top
Electrical Connections (Pin 1) L+ L+
Electrical Connections (Pin 2) Out 2 Out 2
Electrical Connections (Pin 3) L- L-
Electrical Connections (Pin 4) Out 1 Out 1

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A40 Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip 0

Optional Versions


(M) Metric Mount
Accessories:
Optional M081A61 Mounting Stud 1
Optional M081A61 Mounting Stud 1

(TO) Temperature Output

English SI
Battery Life ~10 Months
